Запчасти Case IH PUMA 180 (1.75.4/02) - (VAR.041-132) REVERSIBLE FAN (06) - ELECTRICAL SYSTEMS

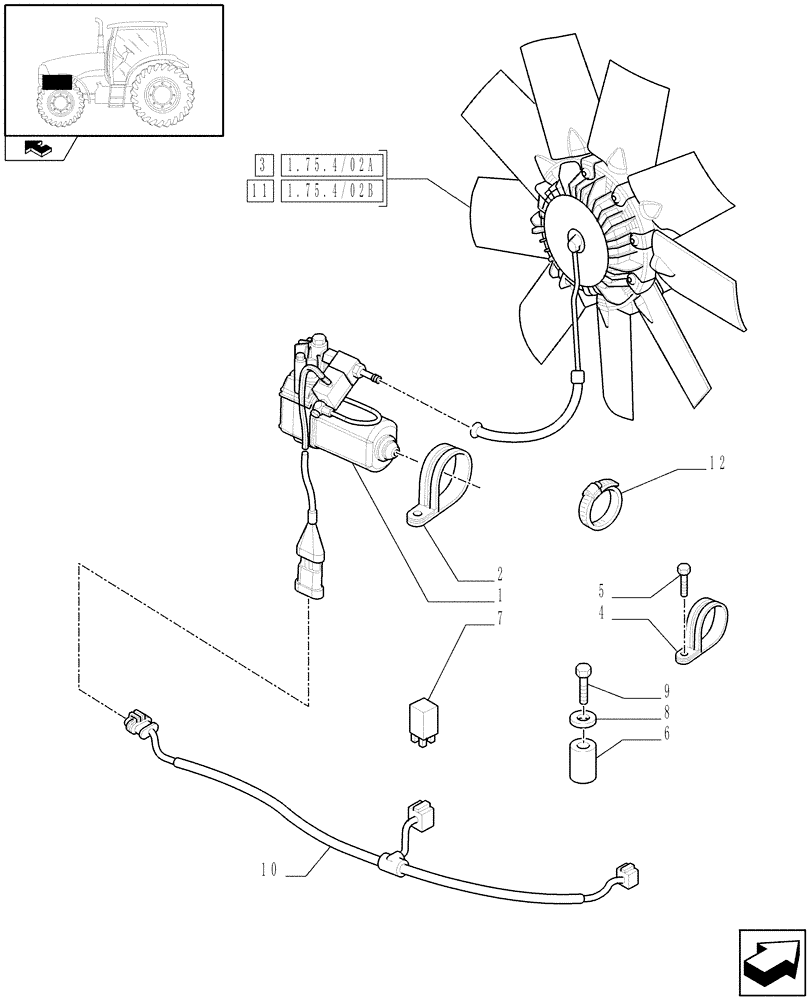

Схема запчастей Case IH PUMA 180 - (1.75.4/02) - (VAR.041-132) REVERSIBLE FAN (06) - ELECTRICAL SYSTEMS
12
1
8
4
3
1.75.4/02a
home
1.75.4/02b
6
9
11
2
7
5
10

Артикул

Название

Примечание

Количество

1

87683927

AIR COMPRESSOR

1шт.

2

87683928

CLAMP

1шт.

3

84171581

FAN

ASSY, Serial Range: -C6884

1шт.

4

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

With Reversible fan for Front Axle Suspension, VAR.132

1шт.

5

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

With Reversible fan for Front Axle Suspension, VAR.132

1шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

, Start Serial: D6884

1шт.

With Reversible fan, VAR.041

1шт.

6

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

M8.5 x 15 x 23

1шт.

With Reversible fan for Front Axle Suspension, VAR.132

1шт.

7

82017871

RELAY,12V, 20A

1шт.

8

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

, Serial Range: -C6884

1шт.

With Reversible fan, VAR.041

1шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

, Start Serial: D6884

1шт.

With Reversible fan, VAR.041

1шт.

9

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

1шт.

With Reversible fan for Front Axle Suspension, VAR.132

1шт.

10

87677188

WIRE HARNESS

1шт.

11

84355613

FAN

ASSY, Start Serial: D6884

1шт.

12

9994404

HOSE CLIP

, Start Serial: D6884

1шт.

With Reversible fan, VAR.041

1шт.

Выбрано товаров: 23
