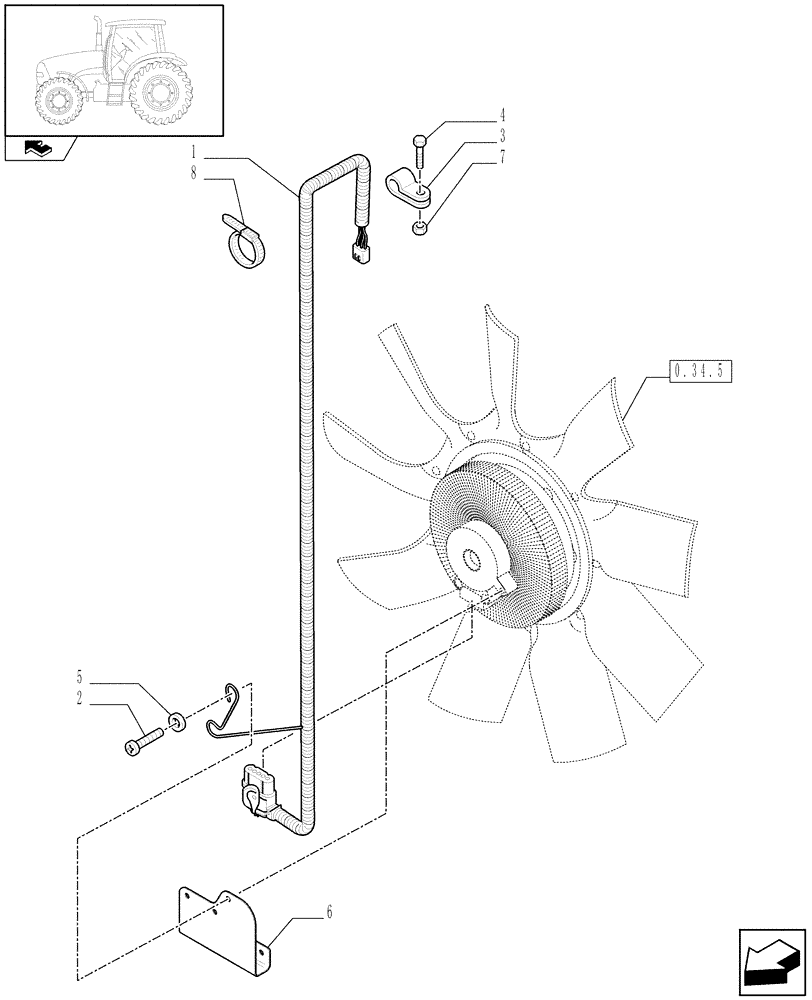

Запчасти Case IH PUMA 180 (1.75.4[02]) - VISCTRONIC FAN HARNESS (06) - ELECTRICAL SYSTEMS

1

87386972

ELECTRIC CABLE

, Serial Range: -C6914

1шт.

1

84383503

WIRE HARNESS

, Start Serial: D6914

1шт.

2

84145237

HEX SOC SCREW

M6 x 20

3шт.

3

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

3

10418401

RETAINER,12mm, Coat, 7mm Bolt Hole, P Type

1шт.

4

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

5

12640601

WASHER,6.15mm ID x 25mm OD x 2mm Thk

2шт.

6

87739411

SUPPORT

1шт.

7

15896211

NUT,M6, Cl 8

1шт.

8

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.
