Запчасти Case IH PUMA 180 (1.32.2/01[02]) - (VAR.147-571) TRASMISSION 19X6 FPS - TOP COVER CONTROL VALVE AND RELATED PARTS (03) - TRANSMISSION

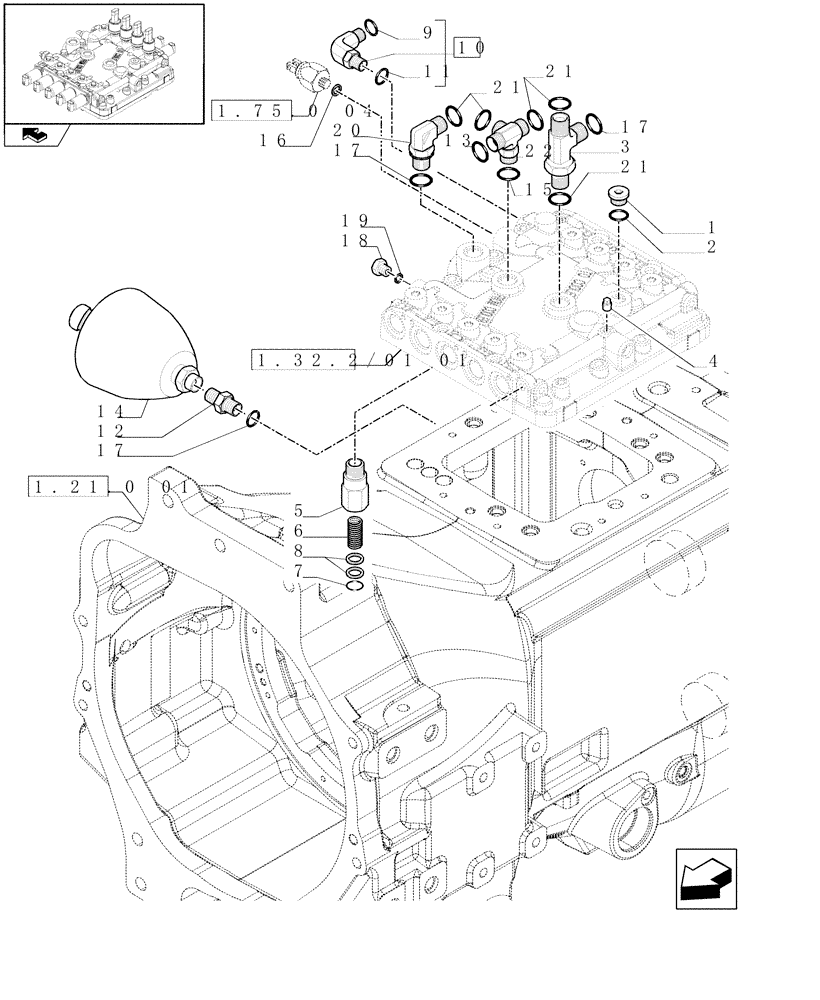

Схема запчастей Case IH PUMA 180 - (1.32.2/01[02]) - (VAR.147-571) TRASMISSION 19X6 FPS - TOP COVER CONTROL VALVE AND RELATED PARTS (03) - TRANSMISSION
1
19
5
13
11
2
17
6
17
10
4
18
22
17
8
home
1.75.0 04
1.21.0 01
1.32.2/01 01
20
9
21
15
21
7
3
14
16
12
21

Артикул

Название

Примечание

Количество

1

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

2

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

3

5187064

TEE

17(q.ty1), 21(q.ty)

1шт.

4

14324011

PLUG,Taper Pipe, Sq Hd, M10 x 1 x 14mm, Cl 5.8

1шт.

5

5198572

VALVE

1шт.

6

5114402

SPRING,Compression, 11mm OD x 35.5mm L

1шт.

7

11057476

SNAP RING,M16, Int

1шт.

8

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

9

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

10

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

5186462

HYD CONNECTOR,M18 x 1.5 x 43.5mm

1шт.

13

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

14

5195043

ACCUMULATOR,0.75L

1шт.

15

14438185

O-RING,24mm ID x 3mm

1шт.

16

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

18

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

19

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

20

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

Incl. 17 (q.ty 1), 21 (q.ty 1)

1шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

22

87316458

HYD CONNECTOR

Incl.21 (q.ty 2), 24, 25

1шт.

Выбрано товаров: 22
