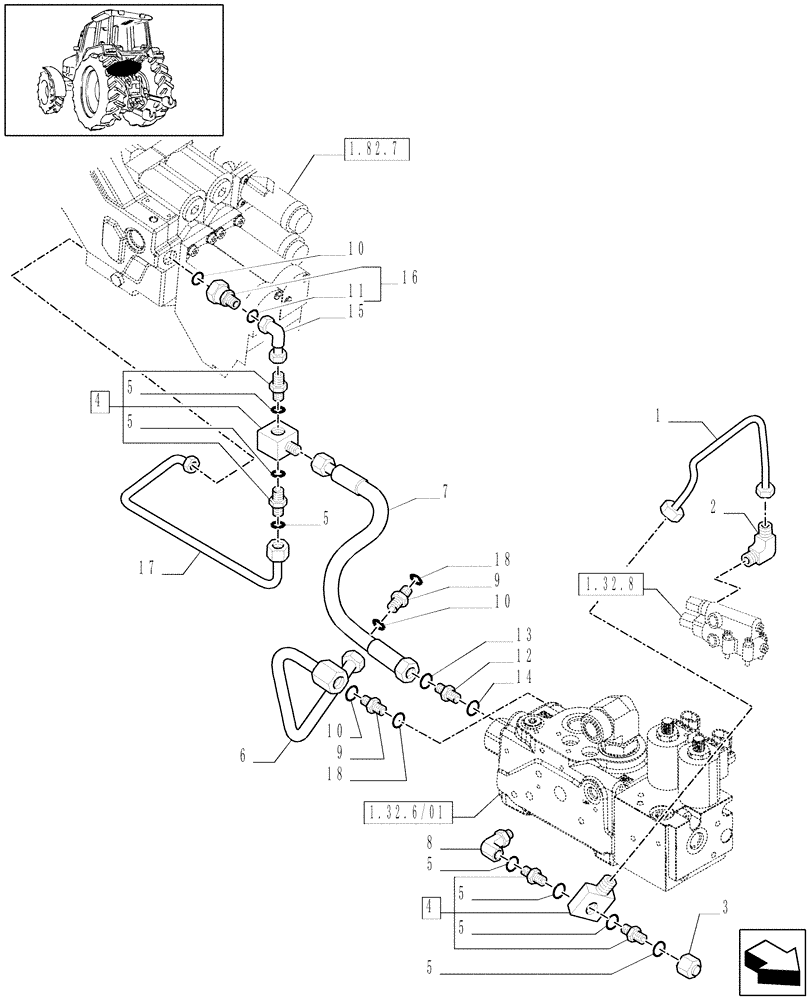

Запчасти Case IH PUMA 180 (1.82.1[01]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

87391558

PIPE

Load Sensing, From Priority Valve To Pump Compensator

1шт.

2

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

1шт.

3

5189973

PLUG

1шт.

4

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

2шт.

5

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

6шт.

6

87392512

PIPE

Priority Valve Drain

1шт.

7

87391563

HOSE,6.4mm ID x 730mm L, SAE 100R2

Load Sensing, From Priority Valve To Remote Valve

1шт.

8

87391555

ELBOW

1шт.

9

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

Incl. 10, 11

2шт.

10

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

11

14437685

O-RING,9.30mm ID x 2.40mm

3шт.

12

5185045

HYD CONNECTOR

Incl. 13, 14

1шт.

13

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

14

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

15

82020198

ELBOW

1шт.

16

47136376

HYD CONNECTOR

Incl. 10, 11

1шт.

17

87316395

PIPE

1шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

2шт.
