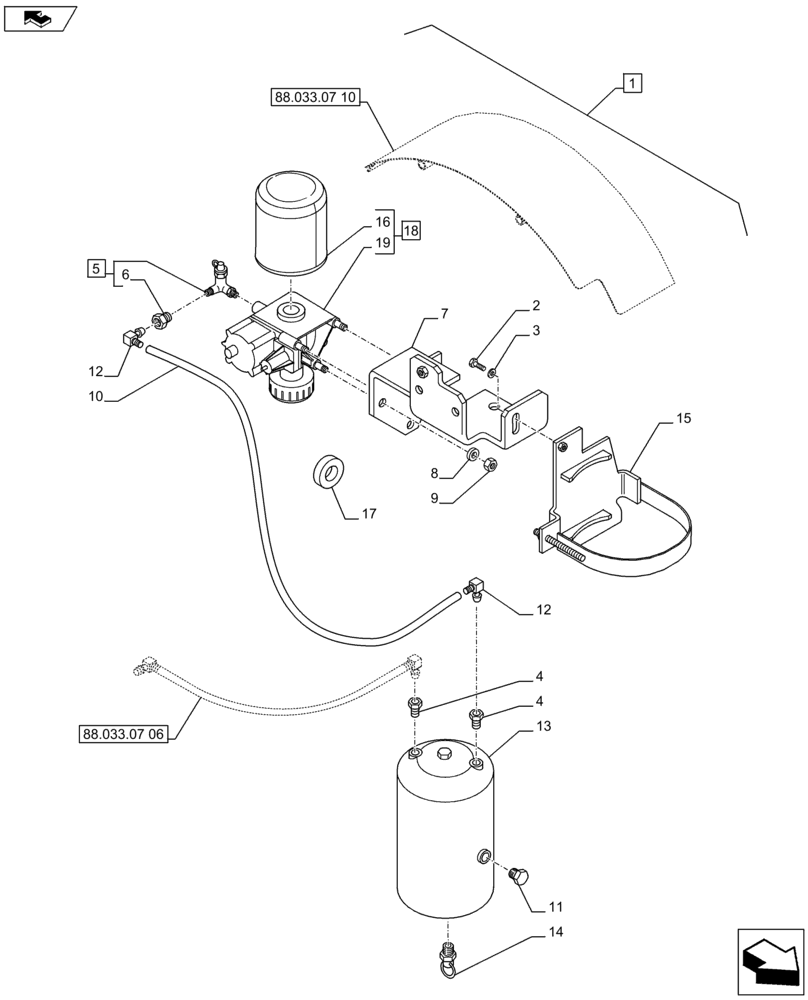

Запчасти Case IH PUMA 170 (88.033.07[05]) - DIA KIT - PNEUMATIC TRAILER BRAKE (ITALY) - REGENERATION AIR DRYER, TANKS AND PIPES (88) - ACCESSORIES

1

718385204

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Italy), Contains Ref. 2-19

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

3

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

4

82036156

FITTING,M22 x 1.5 x NG12

2шт.

5

87345151

HYD CONNECTOR,M22 x 1.5

Contains Ref. 6

1шт.

6

82034157

ADAPTER

1шт.

7

84248386

BRACKET

1шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

9

11702911

NUT,M12, Cl 8, ZND

3шт.

10

84181253

FLEXIBLE HOSE,14.00mm ID x 616.00mm

Contains Ref. 12, Dryer to Reservoir

1шт.

11

82014913

PLUG,M22 x 1.5 x 9mm L

1шт.

12

82038453

HYD CONNECTOR,232 NG12 x 16mm D

2шт.

13

84170918

AIR RESERVOIR

1шт.

14

82004266

DRAIN

1шт.

15

84286331

SUPPORT

1шт.

16

87638772

CARTRIDGE,165mm L

Incl in 18, 165mm

1шт.

17

87305285

SPACER

Less Stabilizer

1шт.

18

84170919

RECEIVER-DRYER

ASSY, Incl 16, 19

1шт.

19

NSS

NOT SOLD SEPARAT

Air Dryer, Incl in 18

1шт.
