Запчасти Case IH PUMA 170 (55.440.0401) - LARGE TOUCHSCREEN FOR BALER BAR - DISPLAY (AFS PRO600) (VAR.743428) (55) - ELECTRICAL SYSTEMS

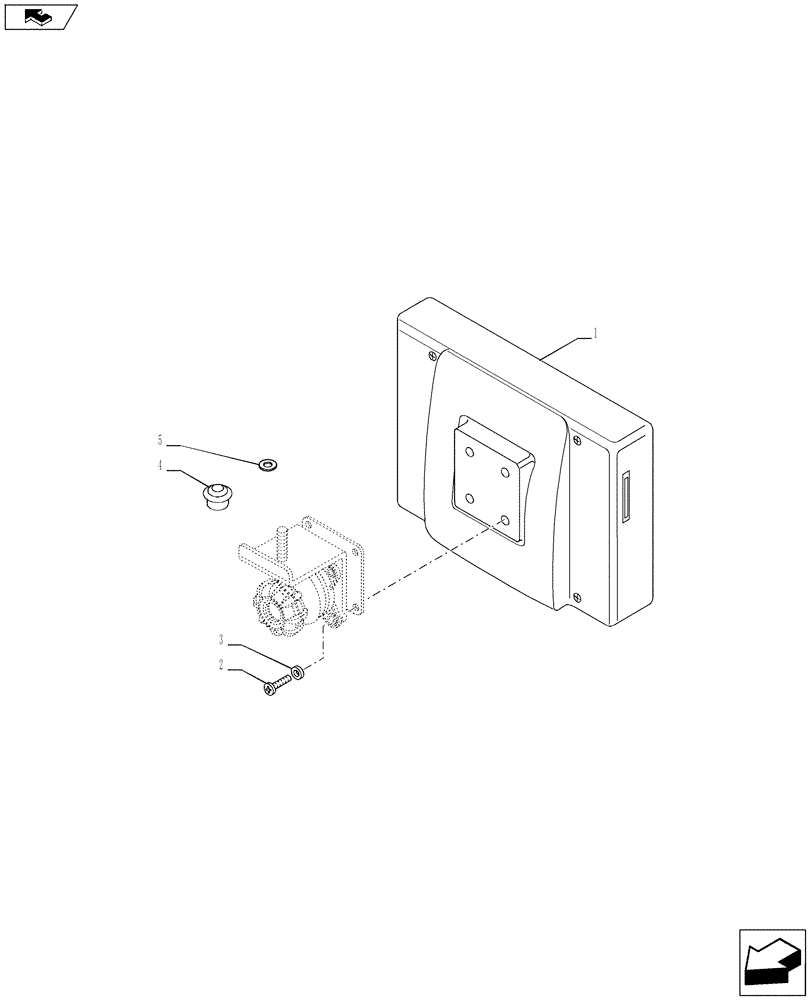

Схема запчастей Case IH PUMA 170 - (55.440.0401) - LARGE TOUCHSCREEN FOR BALER BAR - DISPLAY (AFS PRO600) (VAR.743428) (55) - ELECTRICAL SYSTEMS
5
3
4
1
home
2

Артикул

Название

Примечание

Количество

1

84126831

CONTROL MONITOR

DISPLAY AFS PRO 600 (CIH)

1шт.

1

87385125R

REMAN-ELECT MONITOR

Puma 170, Puma 185, Puma 200, Puma 215, Reman For New P/N 84126831

1шт.

1

87385125C

CORE-MONITOR

Return Part Number

1шт.

1

84604338R

REMAN-ELECT MONITOR

Puma 170, Puma 185, Puma 200, Puma 215, Reman For New P/N 84126831

1шт.

1

84604338C

CORE-MONITOR

Return Part Number

1шт.

2

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

4шт.

3

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

4

81862738

PLUG,M38 x 28 x 5mm

4шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 9
