Запчасти Case IH PUMA 170 (55.418.0201) - PANEL INSTRUMENT (55) - ELECTRICAL SYSTEMS

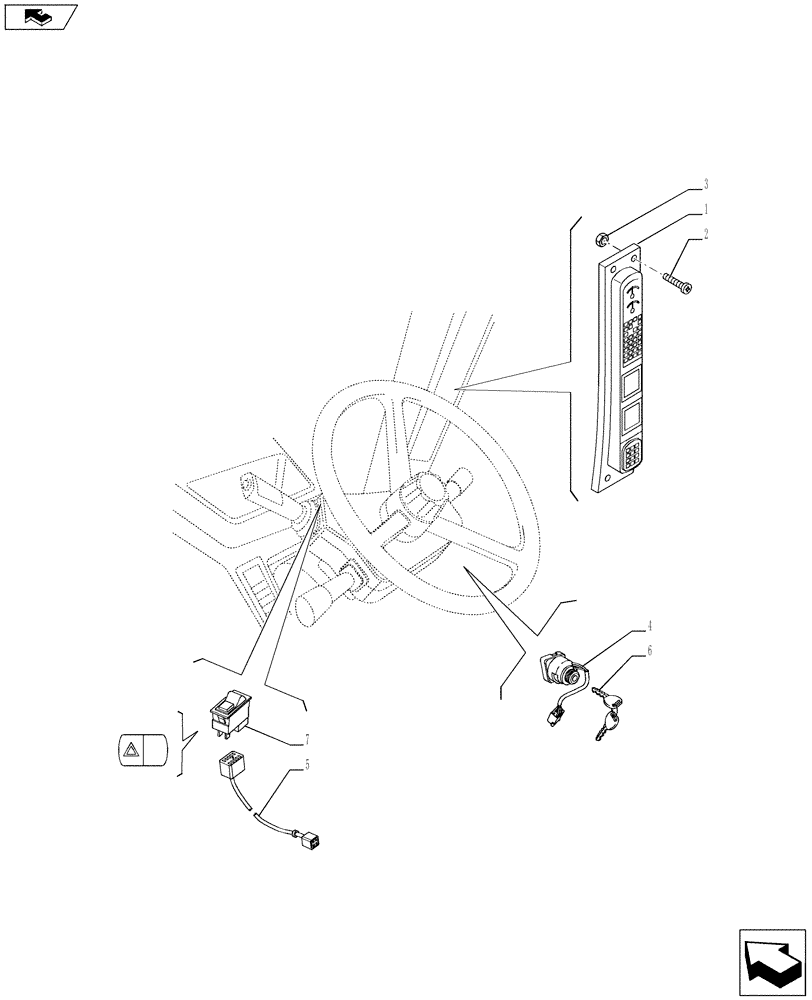

Схема запчастей Case IH PUMA 170 - (55.418.0201) - PANEL INSTRUMENT (55) - ELECTRICAL SYSTEMS
5
3
2
home
6
1
7
4

Артикул

Название

Примечание

Количество

1

84262277

CLUSTER

Wheat Grey, Enhanced, Serial Range: -C7104

1шт.

Standard Equipment for Electrohydraulic Remotes Models only

1шт.

Tractor Performance Monitor, VAR.729725, Mechanical Remote Models Only

1шт.

1

84530014

INSTRUMENT CLUSTER

Wheat Grey, Enhanced, Serial Range: D7014-C7105

1шт.

Standard Equipment for Electrohydraulic Remotes Models only

1шт.

Tractor Performance Monitor, VAR.729725, Mechanical Remote Models Only

1шт.

1

47404249

INSTRUMENT CLUSTER

Wheat Grey, Enhanced, Start Serial: D7105

1шт.

Standard Equipment for Electrohydraulic Remotes Models only

1шт.

Tractor Performance Monitor, VAR.729725, Mechanical Remote Models Only

1шт.

2

87497921

SELF-TAP SCREW,Phillips Drive, Pan HD, M1.2 x 1.4 x 22mm

4шт.

3

83935425

SPRING NUT,Prev Torque, #8

4шт.

4

87561528

SWITCH ASSY

1шт.

5

82035386

WIRE HARNESS

1шт.

6

82030144

IGNITION KEY

2шт.

7

82037364

SWITCH ASSY

1шт.

Выбрано товаров: 15
