(55.410.0101) - ABS SYSTEM - FOOT BRAKE CONTROL - SWITCH AND HARNESS (VAR.743922)

Запчасти Case IH PUMA 170 (55.410.0101) - ABS SYSTEM - FOOT BRAKE CONTROL - SWITCH AND HARNESS (VAR.743922) (55) - ELECTRICAL SYSTEMS

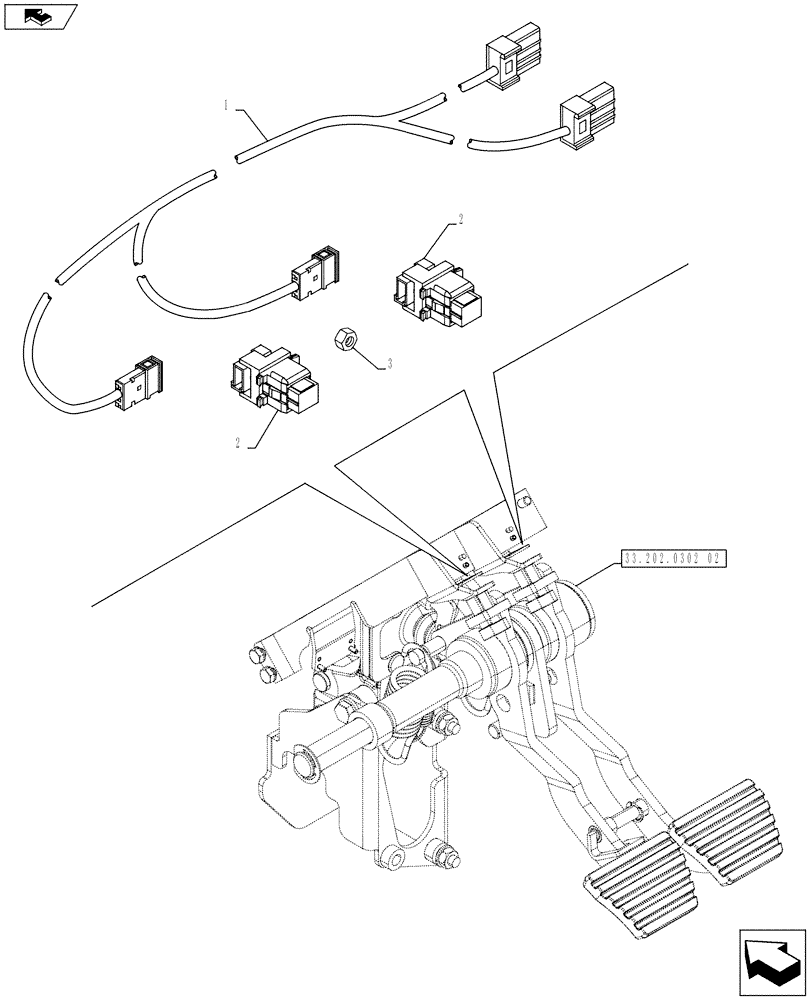

Схема запчастей Case IH PUMA 170 - (55.410.0101) - ABS SYSTEM - FOOT BRAKE CONTROL - SWITCH AND HARNESS (VAR.743922) (55) - ELECTRICAL SYSTEMS
3
2
33.202.0302 02
1
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84590139

WIRE HARNESS

Pedal Link Lead

1шт.

2

84364909

SWITCH

2шт.

3

825-5146

SERRATED NUT,M6, Flg Ser

M6

4шт.

Выбрано товаров: 3
