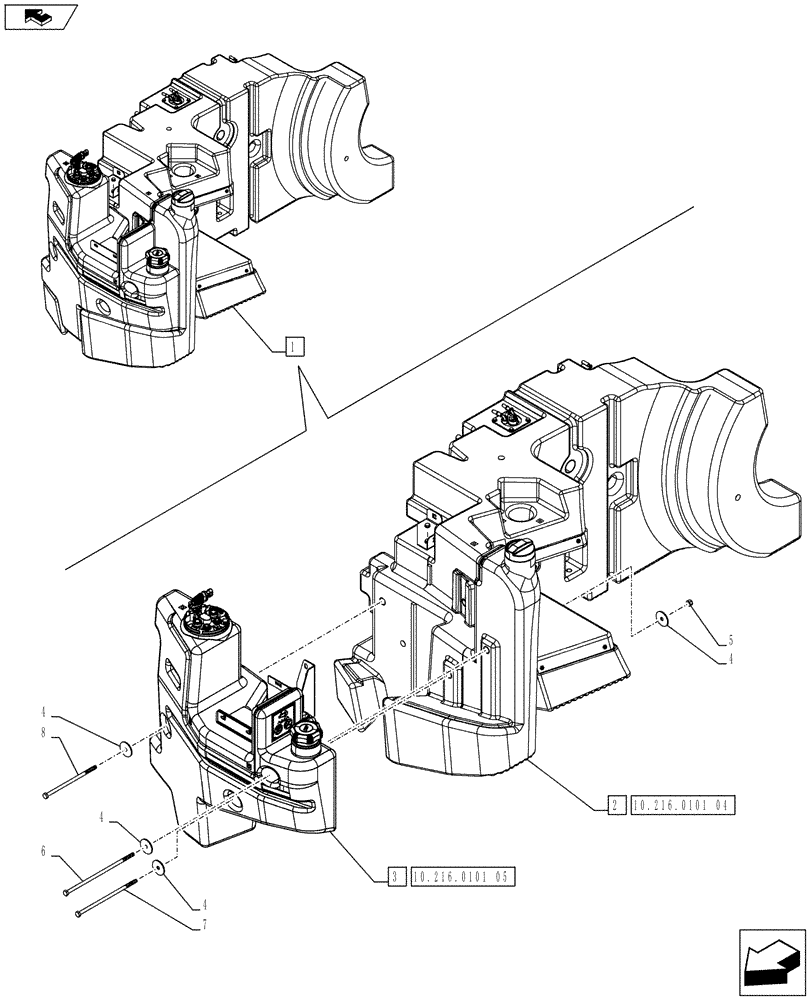

Запчасти Case IH PUMA 170 (10.216.0101[03]) - ABS SYSTEM - FUEL TANK - BREAKDOWN (VAR.743922) (10) - ENGINE

1

47403113

FUEL TANK

ASSY, Contains Ref. 2-8

1шт.

2

47403111

FUEL TANK

ASSY

1шт.

3

84364734

EXHAUST FLUID TANK,56L

ASSY

1шт.

4

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

6шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

6

84077701

BOLT,Hex, M10 x 250mm, Cl 8.8, Full Thd

1шт.

7

2142046

BOLT,Hex, M10 x 1.5 x 290mm, Cl 10.9

1шт.

8

2186540

BOLT,Hex, M10 x 215mm, Cl 10.9

1шт.
