(55.404.05) - FENDER MOUNTED LICENSE PLATE - REAR LICENSE PLATE LIGHT (VAR.720965)

Запчасти Case IH PUMA 170 (55.404.05) - FENDER MOUNTED LICENSE PLATE - REAR LICENSE PLATE LIGHT (VAR.720965) (55) - ELECTRICAL SYSTEMS

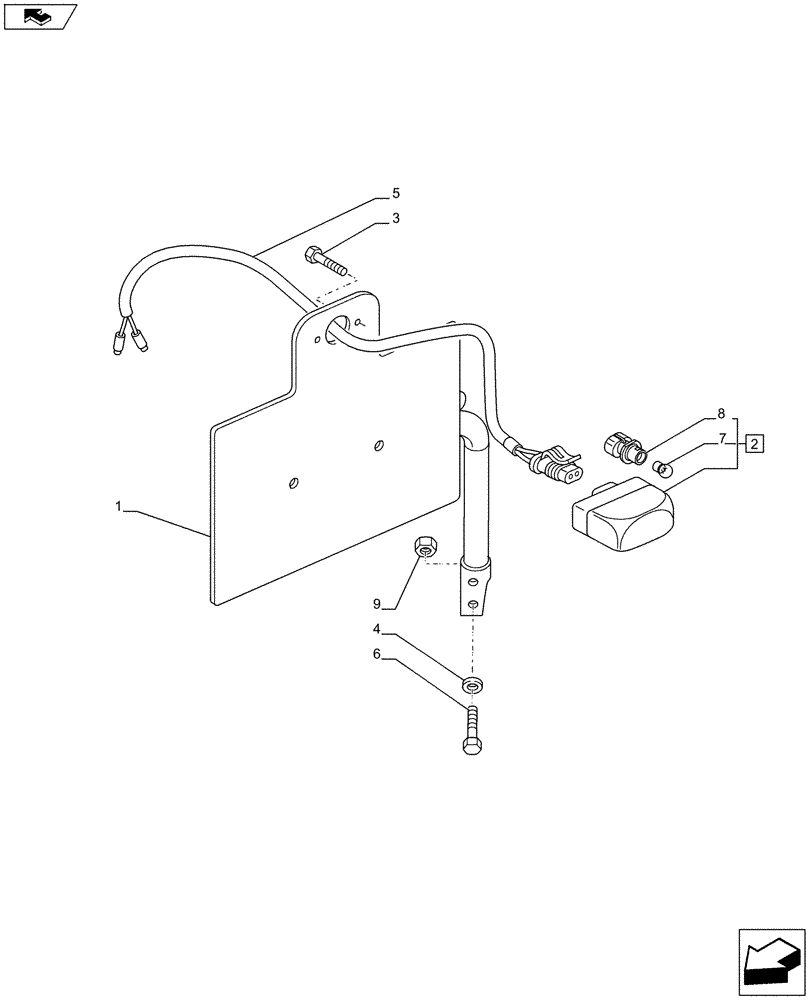

Схема запчастей Case IH PUMA 170 - (55.404.05) - FENDER MOUNTED LICENSE PLATE - REAR LICENSE PLATE LIGHT (VAR.720965) (55) - ELECTRICAL SYSTEMS
6
7
2
5
1
3
4
home
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84529865

BRACKET

1шт.

2

87301999

NUMBER PLATE LAMP

ASSY, Cointains Ref. 7,8

1шт.

3

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

2шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

5

84537390

WIRE HARNESS

Licence Plate

1шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

7

14144190

BULB,W5W, 12V, 5W

12V/5W

1шт.

8

87304742

HOLDER

1шт.

Выбрано товаров: 8
