Запчасти Case IH PUMA 170 (55.301.02) - BATTERY, COVERS AND RELATED SUPPORTS (55) - ELECTRICAL SYSTEMS

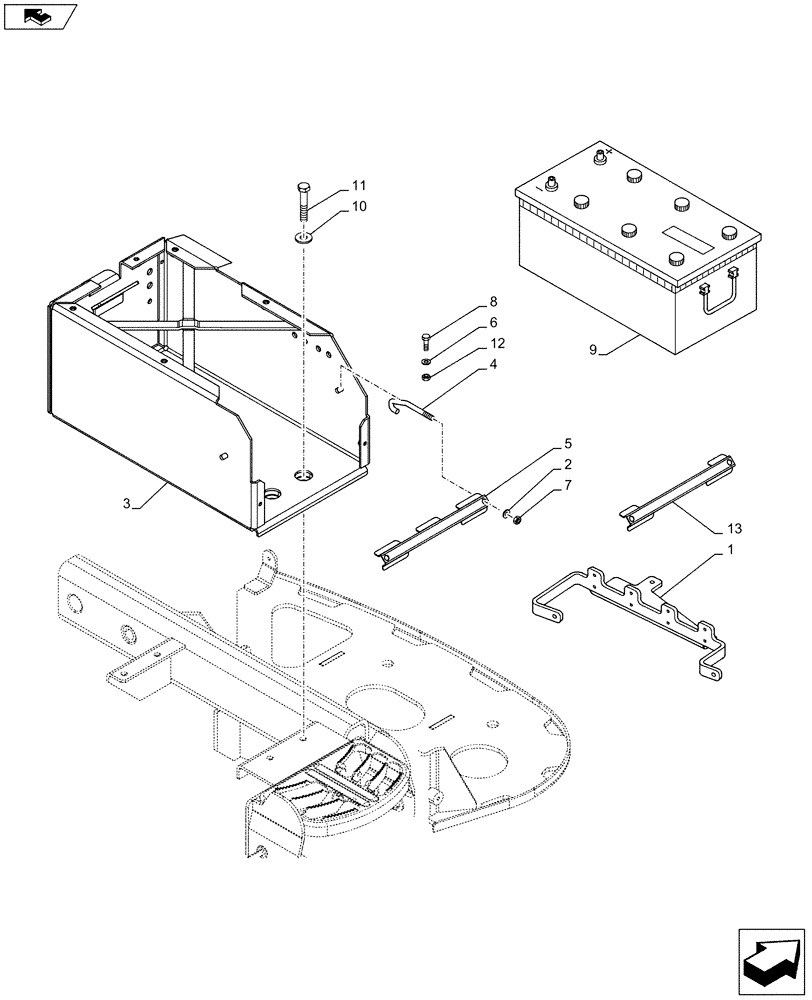

Схема запчастей Case IH PUMA 170 - (55.301.02) - BATTERY, COVERS AND RELATED SUPPORTS (55) - ELECTRICAL SYSTEMS
13
7
4
home
3
10
9
1
2
8
6
11
12
5

Артикул

Название

Примечание

Количество

1

84339071

SUPPORT

1шт.

2

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Serial Range: -ZDBS53124

2шт.

2

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

, Start Serial: ZDBS53125

2шт.

3

84402058

BATTERY BOX

1шт.

4

84323271

HOOK

2шт.

5

84323268

CLAMP

, Serial Range: -ZDBS53124

1шт.

6

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

82027430

WET BATTERY,EN 50342-4 D5, 12V, 1300CCA

176Ah 1300A

1шт.

10

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

11

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

12

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

13

84544629

BRACKET

, Start Serial: ZDBS53125

1шт.

Выбрано товаров: 14
