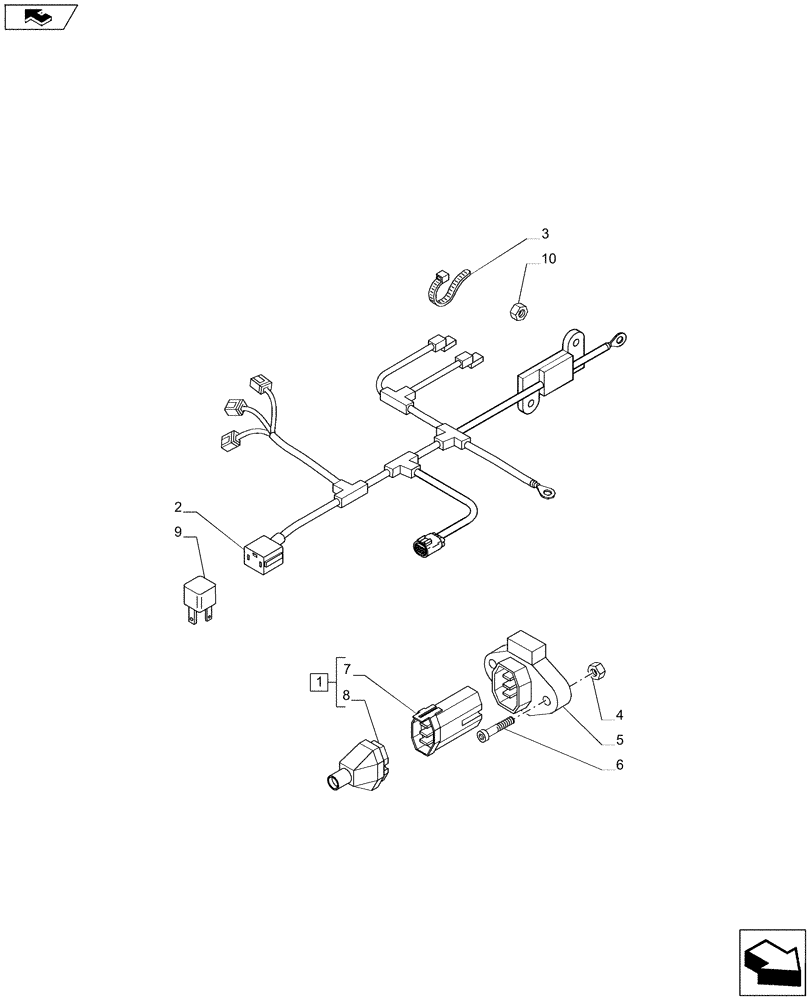

Запчасти Case IH PUMA 170 (55.100.14) - FRONT IMPLEMENT SOCKET (55) - ELECTRICAL SYSTEMS

1

87301678

POWER SOCKET

Includes Ref. 7,8

1шт.

2

87596890

WIRE HARNESS

Front Implement Socket

1шт.

3

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

4

82031857

RIVET

2шт.

5

82029732

POWER SOCKET

Includes Ref. 14

1шт.

6

84187831

SCREW,Torx Pan Hd, M4 x 25mm, Cl 4.8

2шт.

7

82033061

ELEC CONNECTOR

1шт.

8

12336344

CABLE TERMINAL

1шт.

9

82017871

RELAY,12V, 20A

1шт.

10

353308

NUT,M6 x 1.0, Cl 8

1шт.
