(50.200.06) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS

Запчасти Case IH PUMA 170 (50.200.06) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (50) - CAB CLIMATE CONTROL

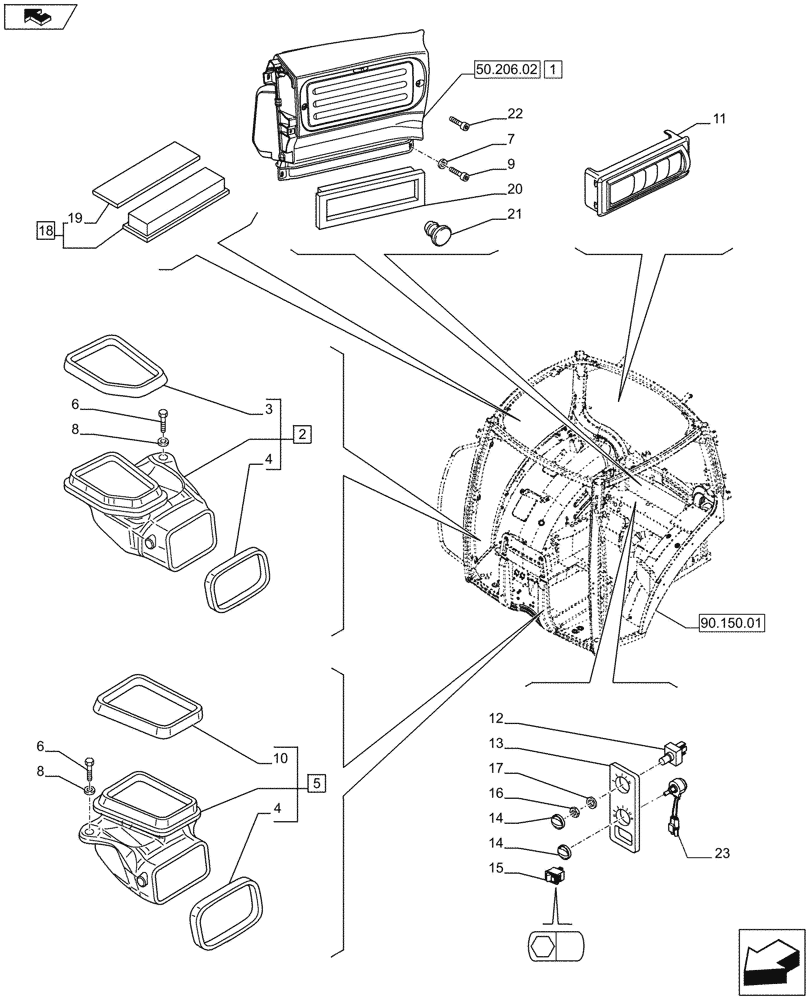

Схема запчастей Case IH PUMA 170 - (50.200.06) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (50) - CAB CLIMATE CONTROL
90.150.01
21
3
4
1
8
15
2
14
6
8
22
14
12
9
23
19
1
6
17
16
20
13
7
1
4
10
18
5
50.206.02
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87651396

BLOWER,12V

ASSY

1шт.

2

87518106

DUCT

RH, Contains Ref. 3,4

1шт.

3

87523583

SEAL

1шт.

4

87523573

SEAL

2шт.

5

87390278

DUCT

LH, Contains Ref. 4,10

1шт.

6

87578958

SELF-TAP SCREW,M6.3 x 1.8 x 25mm

RH

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

9

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

M6 x 20, Serial Range: -C7254

2шт.

10

87523726

SEAL

1шт.

11

87568777

VENT

2шт.

12

82023545

FAN SWITCH

1шт.

13

87698075

DECAL

1шт.

14

87699601

KNOB

2шт.

15

84203366

SWITCH ASSY

1шт.

16

83905114

NUT

1шт.

17

81829134

LOCK WASHER,0.464" ID x 0.76" OD x 0.04" Thk

1шт.

18

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Contains Ref. 19

2шт.

19

87726694

FOAM

1шт.

20

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

1шт.

21

82027031

PLUG,M10

1шт.

22

13276617

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 5.8, Full Thd

, Start Serial: D7254

2шт.

23

47415158

POTENTIOMETER,0-10 Ohm, 0.5 Watt

Temperature

1шт.
