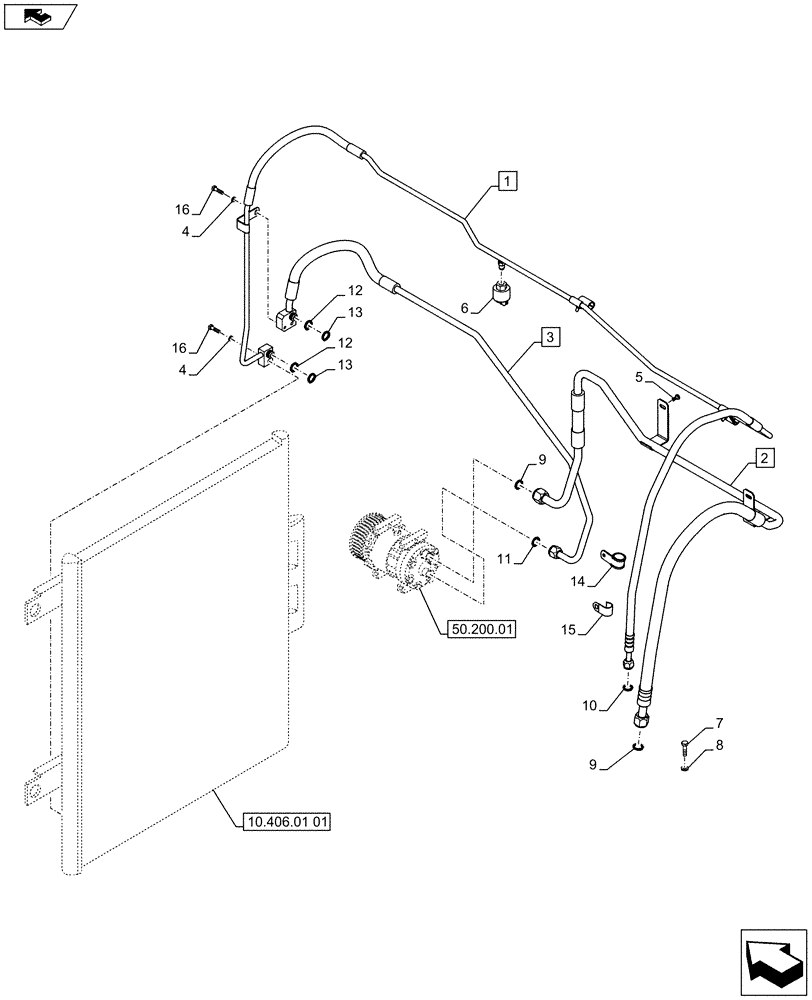

Запчасти Case IH PUMA 170 (50.200.02[01A]) - AIR CONDITIONING SYSTEM PIPES - D7381 (50) - CAB CLIMATE CONTROL

1

47450619

TUBE

ASSY, Contains Ref. 10, 12, 13 (Qty 1)

1шт.

2

84344493

PIPE ASSY.

ASSY, Contains Ref. 9

1шт.

3

47450584

TUBE

ASSY, Contains Ref. 11 - 13 (Qty 1)

1шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

5

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

6

84233818

PRESSURE SWITCH

1шт.

7

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

1шт.

8

14498824

WASHER

1шт.

9

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

10

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

11

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

12

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

13

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.

14

87331631

CLAMP

1шт.

15

82013721

CLIP

1шт.

16

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

3шт.
