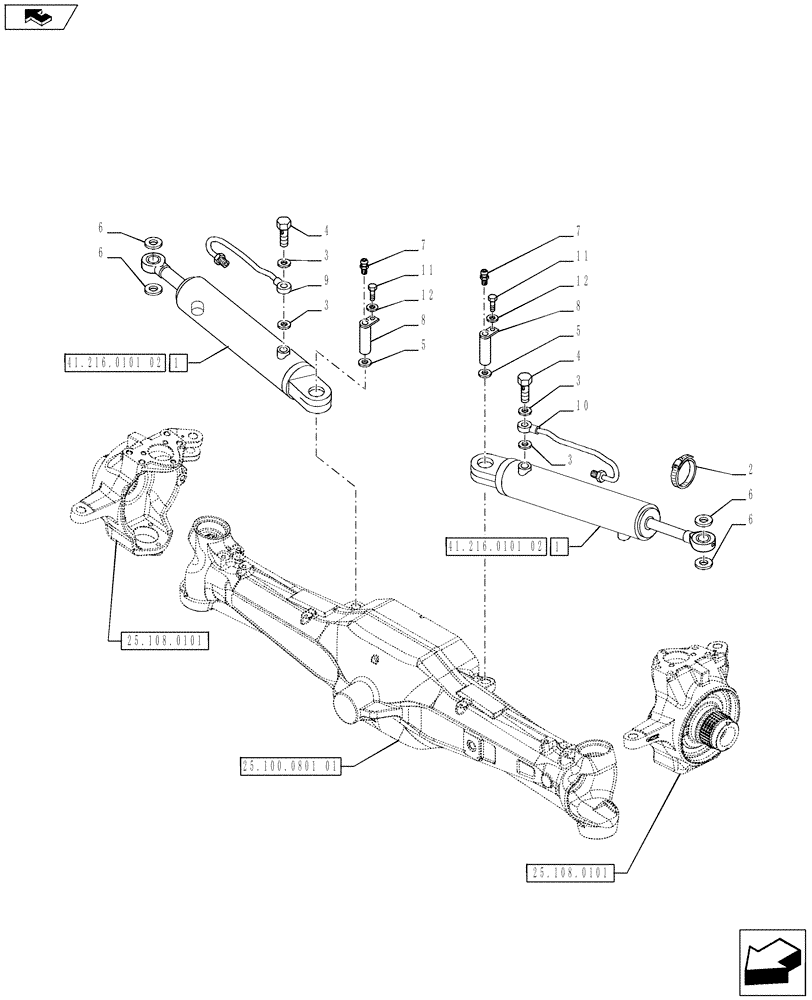

Запчасти Case IH PUMA 170 (41.216.0101[01]) - CLASS 4 FRONT AXLE SUPERSTEER - HYDRAULIC STEERING CYLINDER AND PIPES (VAR.728217) (41) - STEERING

1

87398143

SERVO STEERING CYL

2шт.

2

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60-80

2шт.

3

87391188

SEAL,14mm ID x 22mm OD x 1.5mm Thk

4шт.

4

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14 x 1,5

2шт.

5

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

6

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

7

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

5192842

RIGID TUBE

RH

1шт.

10

5192839

RIGID TUBE

LH

1шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.
