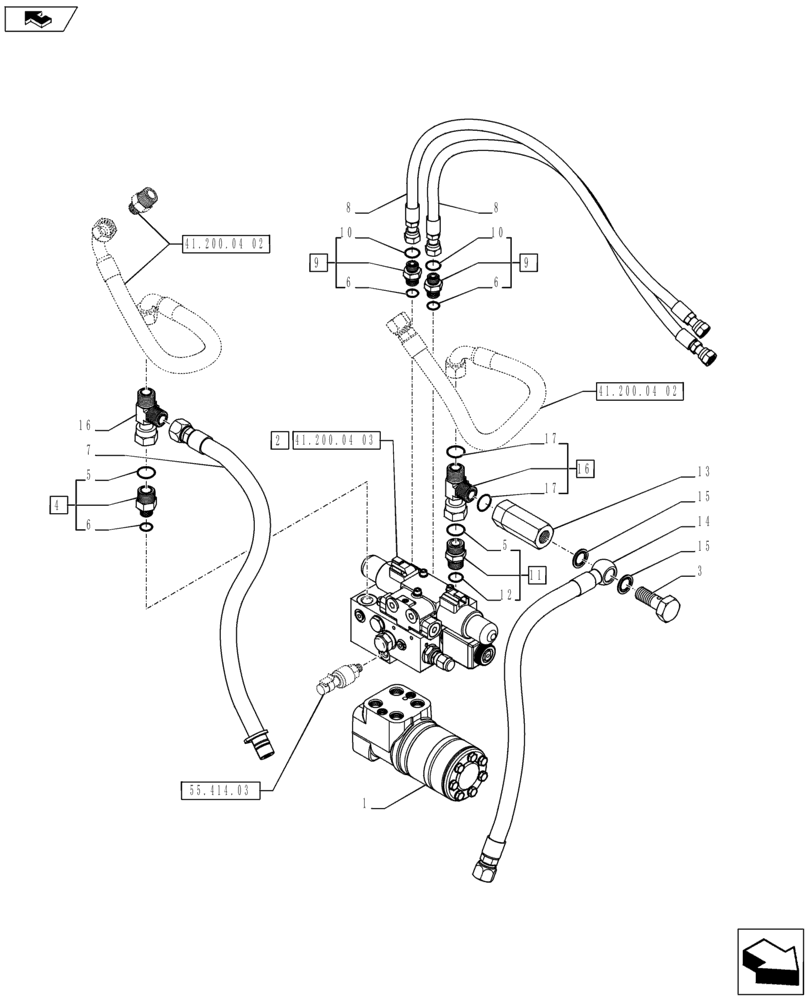

Запчасти Case IH PUMA 170 (41.200.04[01]) - AUTO GUIDANCE SYSTEM READY FOR ARM REST MOUNTED SCREEN - VALVES AND PIPES (VAR.743348 / 743610; VAR.728190) (41) - STEERING

1

84165703

HYDRAULIC STEERING

1шт.

2

84211163

CONTROL VALVE

ASSY

1шт.

3

84989850

3 WAY CONNECTION

Contains Ref. 14

2шт.

4

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

Contains Ref. 5,6

1шт.

5

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

6

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

3шт.

7

87735434

HOSE ASSY.

Autoguide Return

1шт.

8

82037164

HOSE,9.53mm ID x 685mm L, SAE 100R2

Steering

1шт.

9

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

Contains Ref. 6,10

2шт.

10

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

Contains Ref. 5,12

1шт.

12

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

13

87350633

FILTER

1шт.

14

87735435

HOSE ASSY.

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Autoguide Pressure

1шт.

16

84989850

3 WAY CONNECTION

1шт.
