Запчасти Case IH PUMA 170 (41.106.0102) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - LINK (VAR.743964) (41) - STEERING

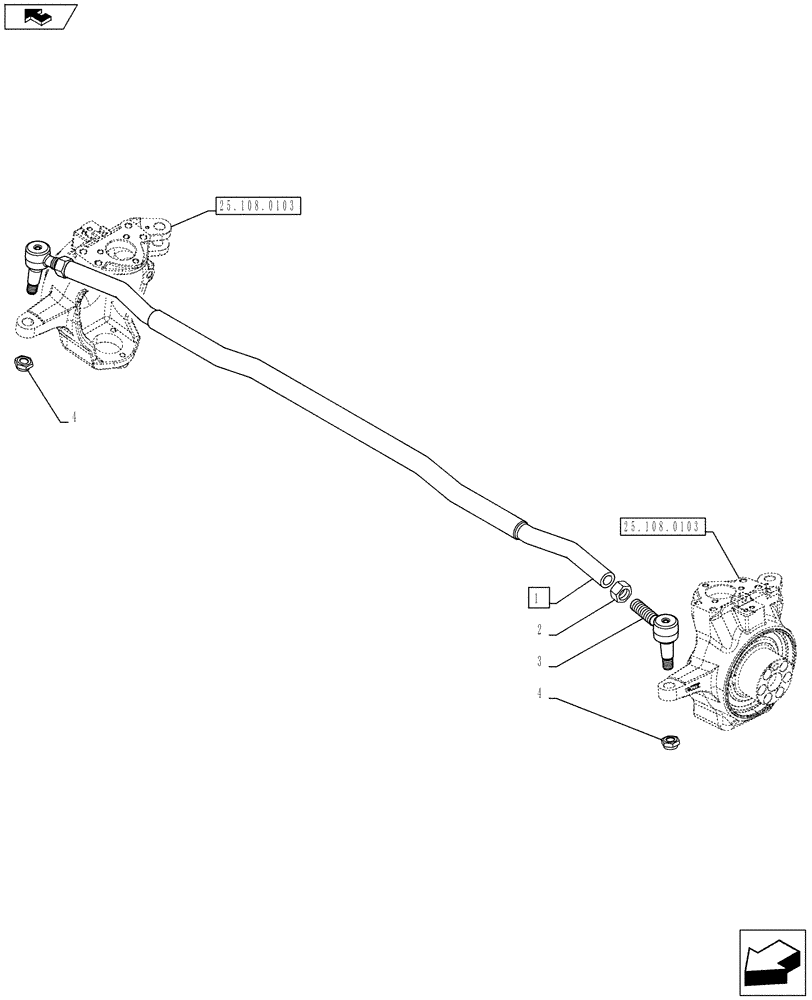

Схема запчастей Case IH PUMA 170 - (41.106.0102) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - LINK (VAR.743964) (41) - STEERING
25.108.0103
25.108.0103
2
1
4
home
4
3

Артикул

Название

Примечание

Количество

1

5198879

TRACK ROD ASSY,M24 x 1.5mm ID x 1634mm L

1шт.

2

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

2шт.

3

5198880

TRACK ROD END

2шт.

4

12577011

NUT,M20 x 1.5, Cl 8

M20 x 1.5 mm

2шт.

Выбрано товаров: 4
