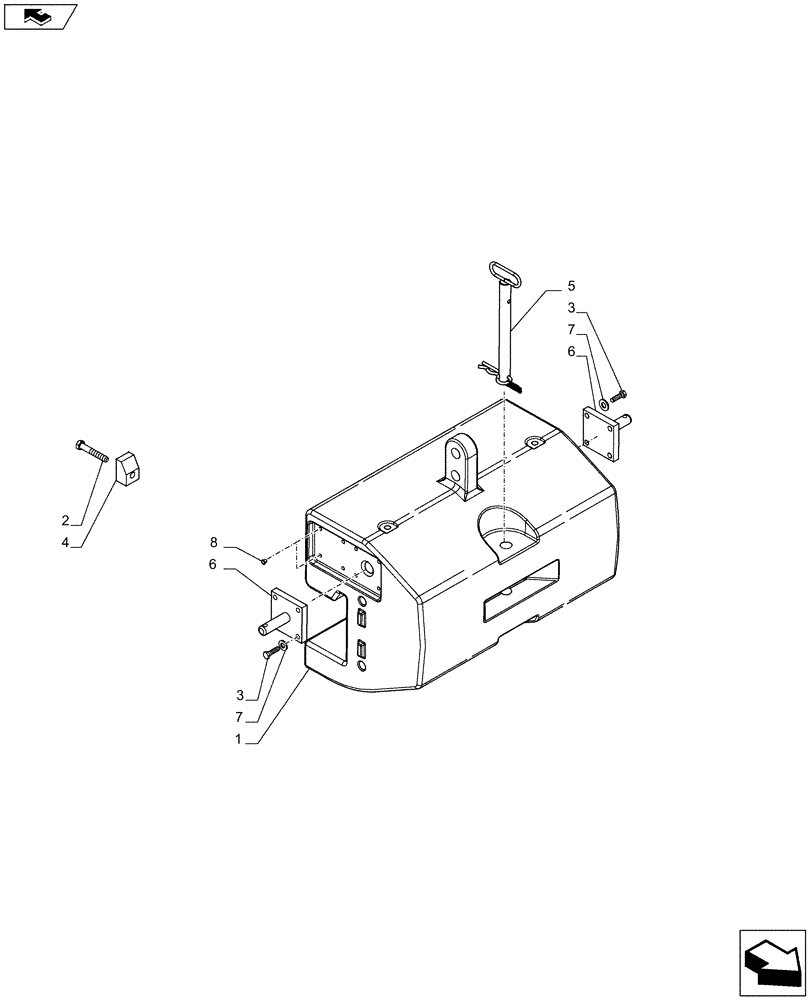

Запчасти Case IH PUMA 170 (37.140.0201[01A]) - WEIGHT PACKAGE - FRONT WEIGHTS (VAR.728593; VAR.729068 / 743635) - D7196 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84551478

WEIGHT,1000kg

1шт.

2

11119921

SCREW,Hex, M16 x 100mm, Cl 8.8

2шт.

3

11113021

BOLT,Hex, M12 x 45mm, Cl 8.8

8шт.

Only for VAR.729068

1шт.

4

87376911

CLAMP,0.932 Kg

2шт.

5

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

6

87301897

HEADED PIN,28mm OD x 120mm L

2шт.

Only for VAR.729068

1шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

8шт.

Only for VAR.729068

1шт.

8

85700893

COVER

8шт.

Only for VAR.729068

1шт.
