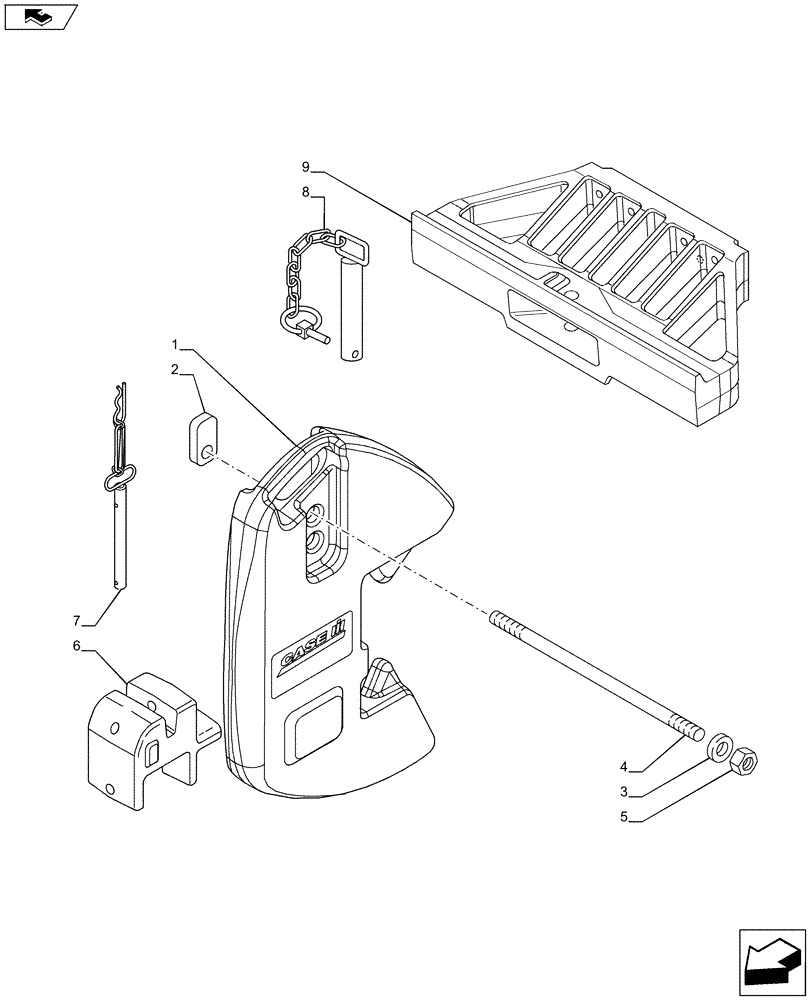

Запчасти Case IH PUMA 170 (37.140.02) - WEIGHT PACKAGE - FRONT WEIGHT (VAR.729037; VAR.729066 / 743634) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

86988727

WEIGHT,45Kg

1шт.

VAR.729066 (Q.ty=6); VAR.729037 (Q.ty=10)

1шт.

2

44995007

CLAMP,Grey

PLATE

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

2шт.

4

82028019

ROD,M16 x 2 x 610.00mm, ZND

M16 x 610

1шт.

5

82011968

NUT,Hex, M16, 2mm Pitch, 13.00mm High, ZND

M16 x 2

4шт.

6

82024272

SUPPORT,110Kg

1шт.

Only for VAR.729066

1шт.

7

44995008

CLEVIS PIN,31mm OD x 337mm L

1шт.

Only for VAR.729066

1шт.

8

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

Parts Shown Are Also Available in DIA Kit 718018014

1шт.

9

82031491

WEIGHT CARRIER

1шт.

Parts Shown Are Also Available in DIA Kit 718018014

1шт.
