Запчасти Case IH PUMA 170 (37.106.01[04]) - HYDRAULIC AUTO PICK-UP HITCH WITH DRAWBAR - DRAWBAR AND TIE RODS (VAR.728248) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

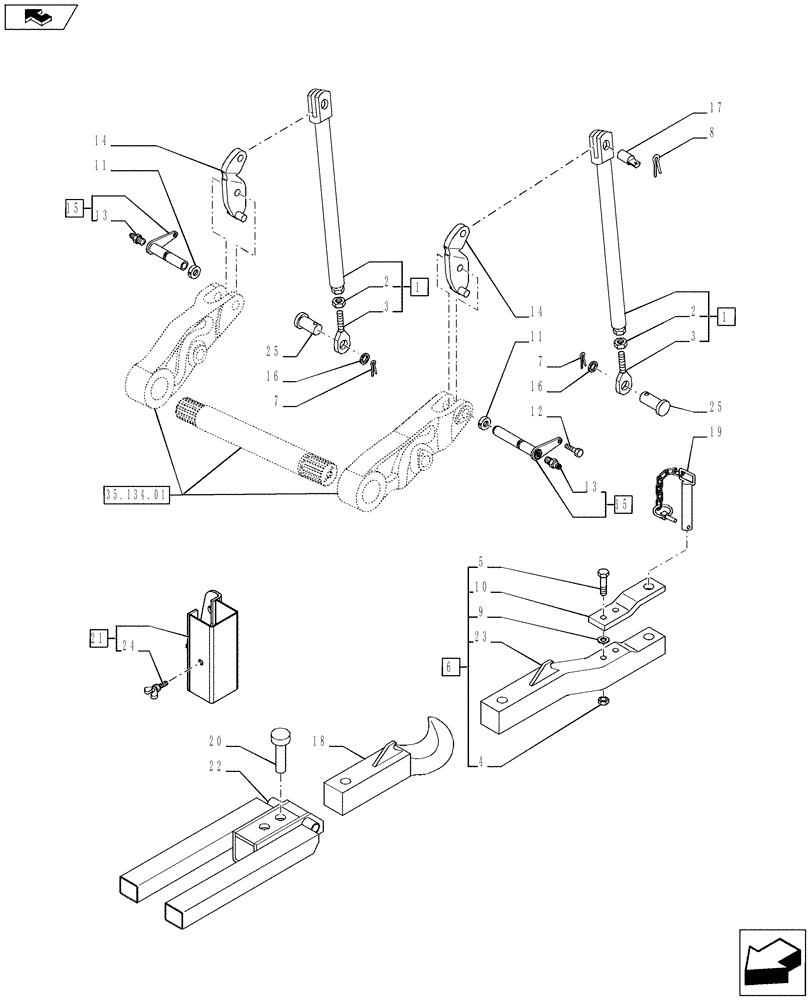

Схема запчастей Case IH PUMA 170 - (37.106.01[04]) - HYDRAULIC AUTO PICK-UP HITCH WITH DRAWBAR - DRAWBAR AND TIE RODS (VAR.728248) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
13
12
25
25
20
3
15
1
7
14
16
11
23
4
14
6
35.134.01
home
16
2
11
2
8
19
24
7
17
3
21
5
1
13
22
10
18
9
15

Артикул

Название

Примечание

Количество

1

82029002

LIFT LINK END ASSY

ASSY, Contains Ref. 2,3

2шт.

2

10703211

THIN NUT,Thin, M18 x 1.5, Cl R04

2шт.

3

82012780

CLEVIS,M18

M18

2шт.

4

10721034

NUT,M18 x 1.5

2шт.

5

15985434

BOLT,M18 x 1.5 x 110mm

M18 x 1.5 x 110

2шт.

6

87731771

DRAWBAR

ASSY, Contains Ref. 2-5,9,10

1шт.

7

81868739

COTTER PIN

2шт.

8

81868739

COTTER PIN

2шт.

9

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

2шт.

10

82036534

BAR,251mm L x 60mm W x 30mm Thk, 50.8mm Offset

1шт.

11

82026564

SPACER,28.15mm ID x 37mm OD x 14mm L

LH

2шт.

12

15970731

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

13

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

14

82025938

ARM

LH

1шт.

14

82026555

ARM

RH

1шт.

15

47131014

PIN,28mm OD x 161mm L

ASSY, Contains Ref. 13

2шт.

16

83908648

WASHER,25.65mm ID x 46.43mm OD x 3.18mm Thk

2шт.

17

82001701

PIN,25mm OD x 61mm L

2шт.

18

87731770

DRAW HOOK

1шт.

19

82025933

PIN,32mm OD x 180mm L

1шт.

20

82036199

PIN,30mm OD x 87mm L

2шт.

21

84227332

SUPPORT ASSY.

ASSY, Contains Ref. 24, Serial Range: -C7103

1шт.

21

84517625

SUPPORT ASSY.

ASSY, Contains Ref. 24, Start Serial: D7103

1шт.

22

87476076

DRAWBAR FRAME

1шт.

23

87731775

DRAWBAR,672mm L x 70mm W x 60mm Thk, 15mm Offset

1шт.

24

82039554

WING NUT,Screw, M10 x 20.00mm, STL, ZND

1шт.

25

82036627

PIN,25mm OD x 70mm L

2шт.

Выбрано товаров: 27
