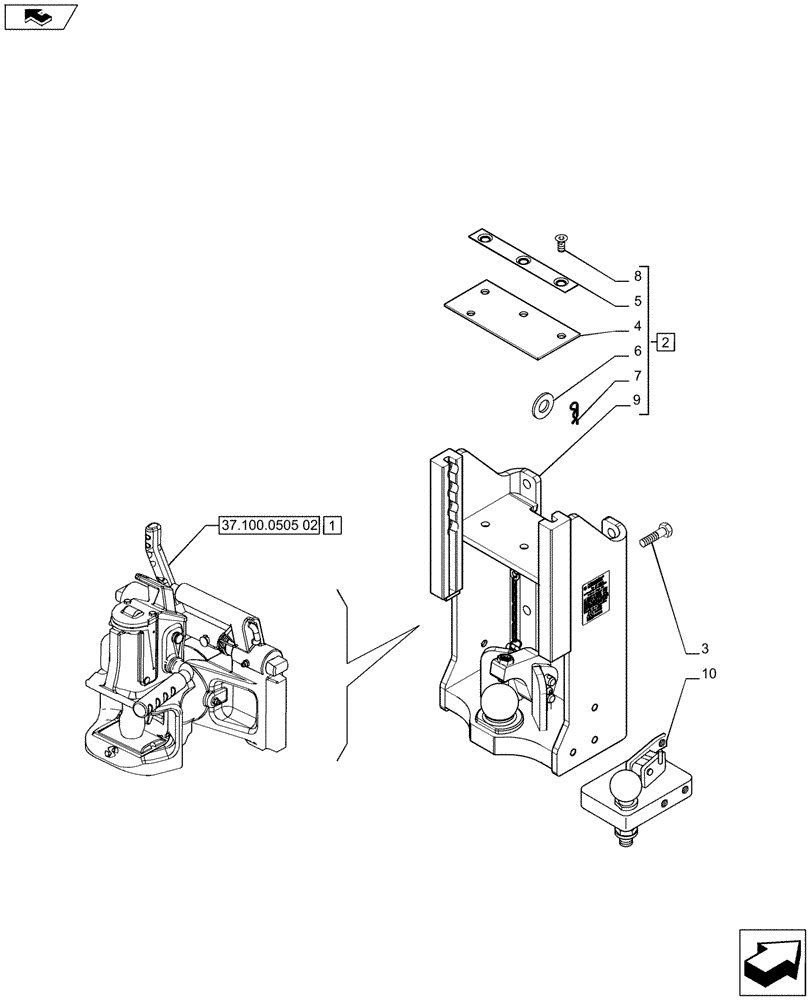

Запчасти Case IH PUMA 170 (37.100.0505[01]) - SLIDER TOW HOOK WITH AUTO SWIVEL COUPLING (38 MM) AND K80 WELDED (VAR.743180) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

82029387

TOW HOOK

TOW HOOK

1шт.

2

84351220

TOW HOOK

Contains Ref. 4-9

1шт.

3

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

1шт.

4

84349490

PLATE

1шт.

5

84349497

PLATE

3шт.

6

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.

7

281072

COTTER PIN,5/16" Dia x 3"

1шт.

8

14642993

RIVET

3шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

87478039

DRAW HOOK

1шт.

Parts Shown Are Also Available in DIA Kit 710534014

1шт.
