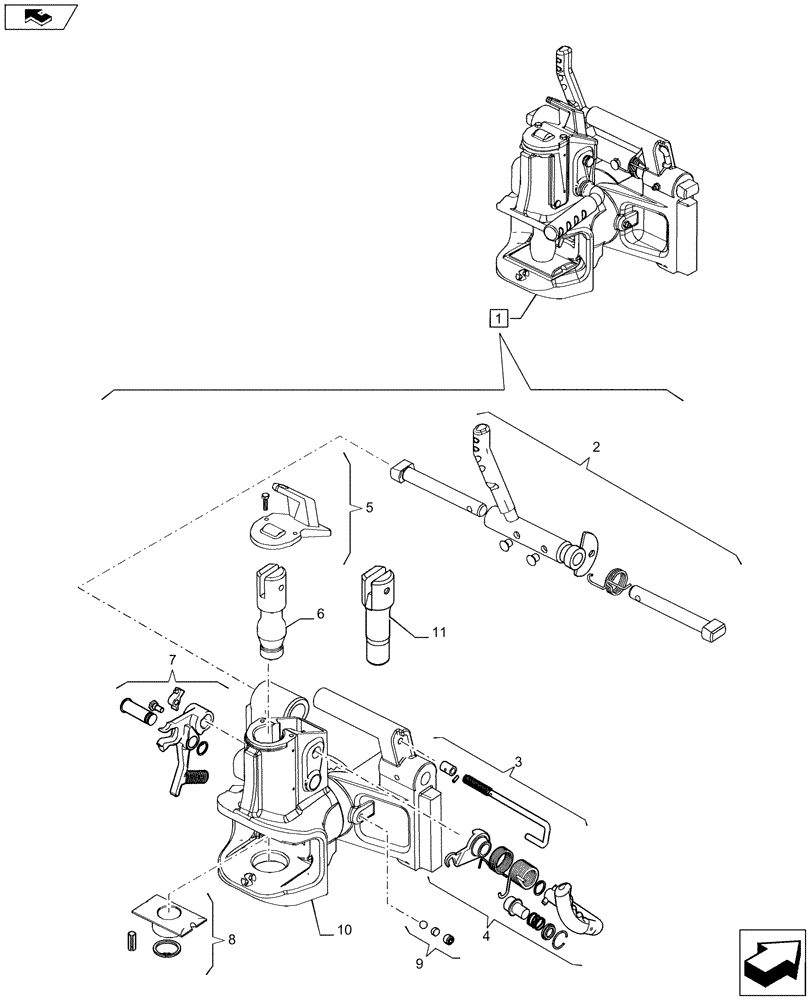

Запчасти Case IH PUMA 170 (37.100.0504[02]) - SLIDER TOW HOOK WITH AUTO HEAVY DUTY SWIVEL COUPLING (38 MM) - COUPLING BREAKDOWN (VAR.720089) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

82039560

TOWHOOK FOR OFFSET S

Contains Ref. 2-10

1шт.

2

84364247

LATCH

1шт.

3

84364248

ROD

1шт.

4

84364249

LEVER

1шт.

5

84364250

COVER

1шт.

6

84366583

HITCH PIN

1шт.

7

84364252

LEVER

1шт.

8

84364253

WEAR PLATE

1шт.

9

84364254

PREV TORQUE BOLT

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

82031288

PIN,37mm OD x 135mm L

1шт.

Parts Shown Are Also Available in DIA Kit 719139014

1шт.

11

86016063

PIN

1шт.

Parts Shown Are Also Available in DIA Kit 719138014

1шт.
