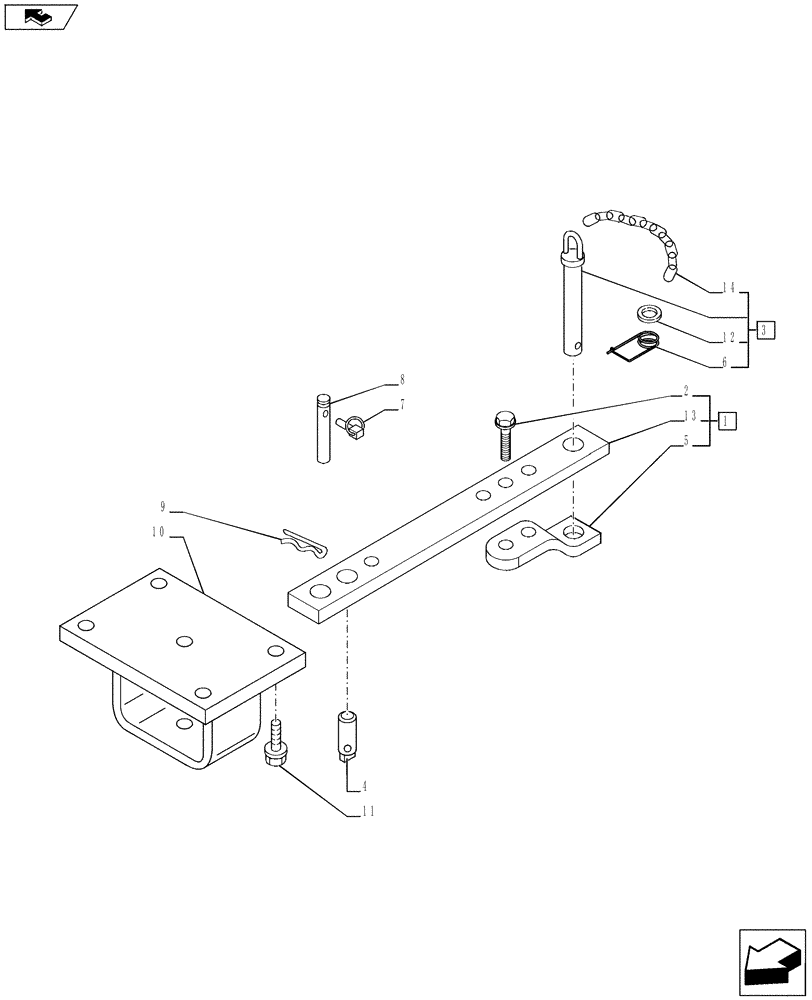

Запчасти Case IH PUMA 170 (37.100.0404) - SWINGING DRAWBAR FOR SLIDER TOW HOOK (ITALIAN TYPE) - SWINGING DRAWBAR (VAR.720913) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

82035236

DRAWBAR

ASSY, Contains Ref. 2,5,13

1шт.

2

11125234

SCREW,Hex, M20 x 75mm, Cl 10.9

2шт.

3

5162713

HITCH PIN,28mm OD x 711.5mm L

ASSY, Contains Ref. 6,12,14

1шт.

4

82035744

PIN

1шт.

5

82026909

SUPPORT

1шт.

6

5152004

HAIR PIN COTTER,195mm L

1шт.

7

82014909

LOCK PIN,5.5mm OD

2шт.

8

82015207

PIN,16mm OD x 141mm L

2шт.

9

82000094

SPRING,40mm OD x 142mm L

1шт.

10

82035741

SUPPORT

1шт.

11

82018940

BOLT,Flng, M18 x 1.5 x 45mm, Cl 12.9

4шт.

12

44901192

SNAP RING,25mm ID

2шт.

13

82035299

1шт.

14

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.
