Запчасти Case IH PUMA 170 (35.100.04[02]) - LIFTER LINES - LIFTER CYLINDERS PIPES - C7091 (VAR.720819-728484-720463-728212) (35) - HYDRAULIC SYSTEMS

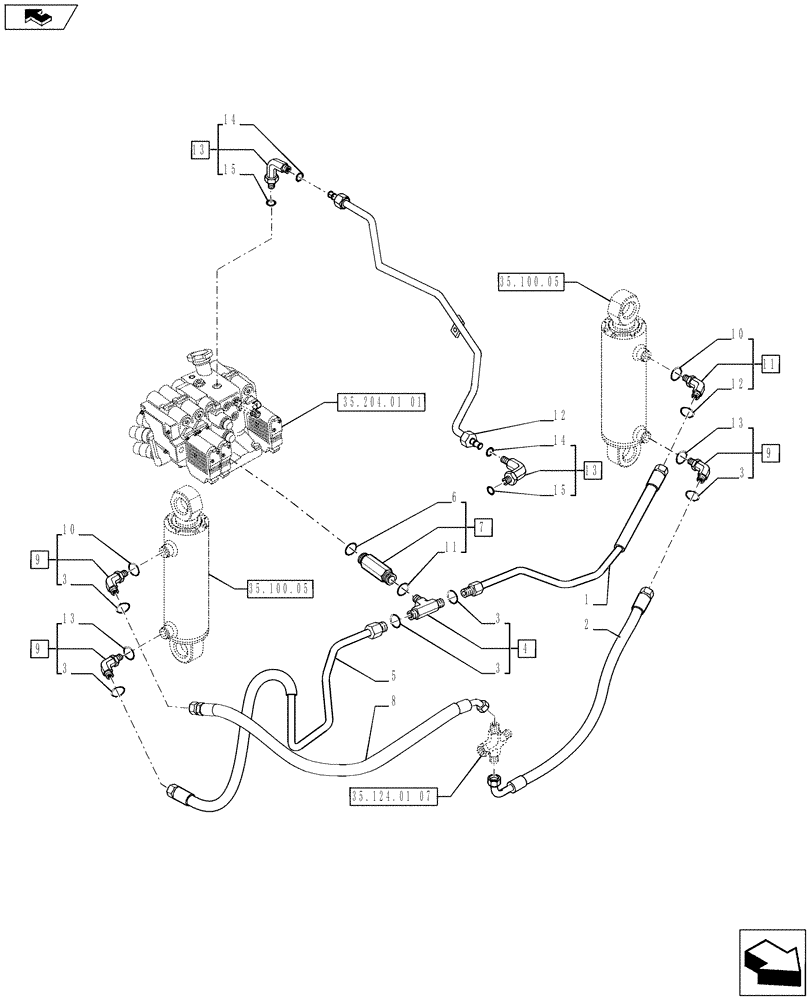

Схема запчастей Case IH PUMA 170 - (35.100.04[02]) - LIFTER LINES - LIFTER CYLINDERS PIPES - C7091 (VAR.720819-728484-720463-728212) (35) - HYDRAULIC SYSTEMS
15
11
11
14
10
home
35.204.01 01
13
14
3
7
13
15
12
2
3
9
13
9
35.100.05
3
5
3
1
9
4
10
3
8
6
35.100.05
35.124.01 07
12
13

Артикул

Название

Примечание

Количество

1

87620232

HYD TUBE

LH Lift Cylinder

1шт.

Only for Models with Electrohydraulic Remotes,Except for VAR.720819

1шт.

1

87367202

PIPE

1шт.

Except for VAR.720819,Only for Models with Mechanical Remotes

1шт.

2

87316344

FLEXIBLE HOSE

LH Lift Cylinder Low Pressure

1шт.

Except for VAR.720819

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

Except for VAR.720819

1шт.

4

5197110

TEE,1"-14 UNS

Contains Ref. 3

1шт.

5

87370316

PIPE

RH Lift Cylinder

1шт.

Only for Models with Electrohydraulic Remotes,Except for VAR.720819

1шт.

5

87367204

PIPE

1шт.

Except for VAR.720819,Only for Models with Mechanical Remotes

1шт.

6

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Only for Models with Electrohydraulic Remotes,Except for VAR.720819

1шт.

6

4438085

1шт.

Except for VAR.720819,Only for Models with Mechanical Remotes

1шт.

7

84323257

HYD CONNECTOR,M22 x 1.5 x 83mm L

Contains Ref. 6,11

1шт.

Only for Models with Electrohydraulic Remotes,Except for VAR.720819

1шт.

7

5185048

HYD CONNECTOR

1шт.

Except for VAR.720819,Only for Models with Mechanical Remotes

1шт.

8

87316345

FLEXIBLE HOSE

RH Lift Cylinder Low Pressure

1шт.

Except for VAR.720819

1шт.

9

5185562

ELBOW

Contains Ref. 3,13

2шт.

Except for VAR.720819

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

Except for VAR.720819

1шт.

11

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Only for Models with Electrohydraulic Remotes,Except for VAR.720819

1шт.

11

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Except for VAR.720819,Only for Models with Mechanical Remotes

1шт.

12

87608190

HYD TUBE

1шт.

Only for Models with Electrohydraulic Remotes

1шт.

12

87367195

PIPE

1шт.

Only for Models with Mechanical Remotes

1шт.

13

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

2шт.

14

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

15

14438185

O-RING,24mm ID x 3mm

2шт.

Выбрано товаров: 38
