Запчасти Case IH PUMA 170 (33.224.0102[17]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - CONTROL VALVE SUPPORT BRACKETS (VAR. 743965) (33) - BRAKES & CONTROLS

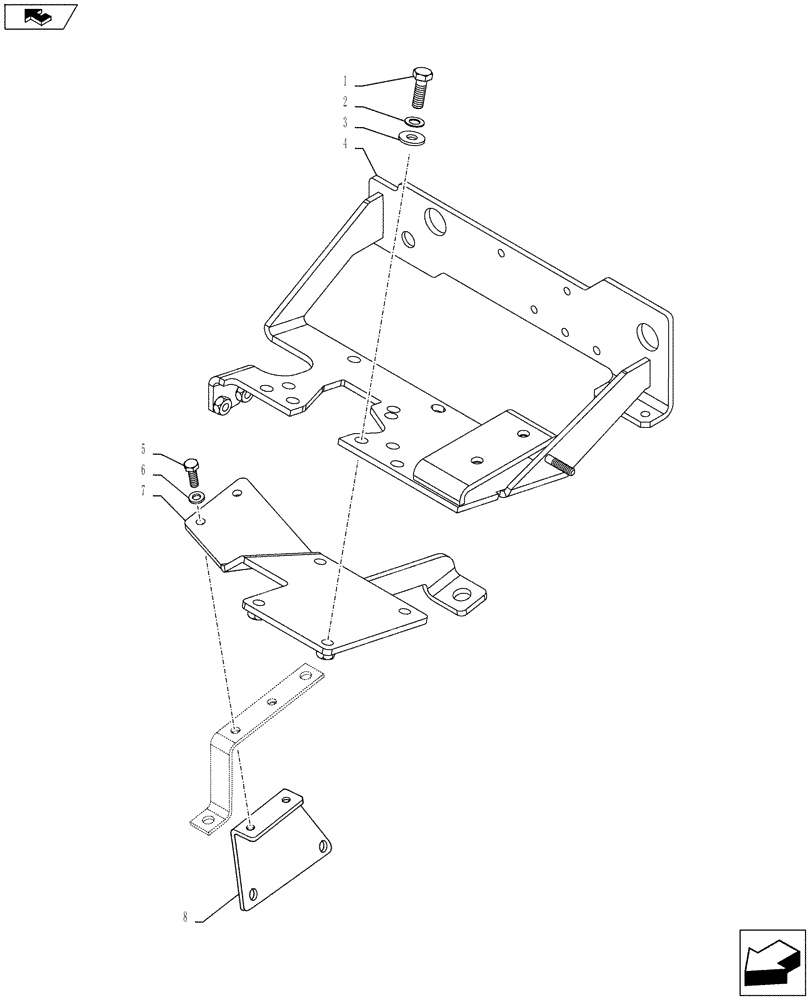

Схема запчастей Case IH PUMA 170 - (33.224.0102[17]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - CONTROL VALVE SUPPORT BRACKETS (VAR. 743965) (33) - BRAKES & CONTROLS
7
home
5
1
8
3
4
6
2

Артикул

Название

Примечание

Количество

1

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

3

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

4

84157689

SUPPORT

1шт.

5

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

, Serial Range: -`0

2шт.

Only for Models with Mechanical Remotes

1шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

, Serial Range: -`0

2шт.

Only for Models with Mechanical Remotes

1шт.

7

87554135

SUPPORT

1шт.

8

87399054

SUPPORT

, Serial Range: -`0

1шт.

Only for Models with Mechanical Remotes

1шт.

Выбрано товаров: 13
