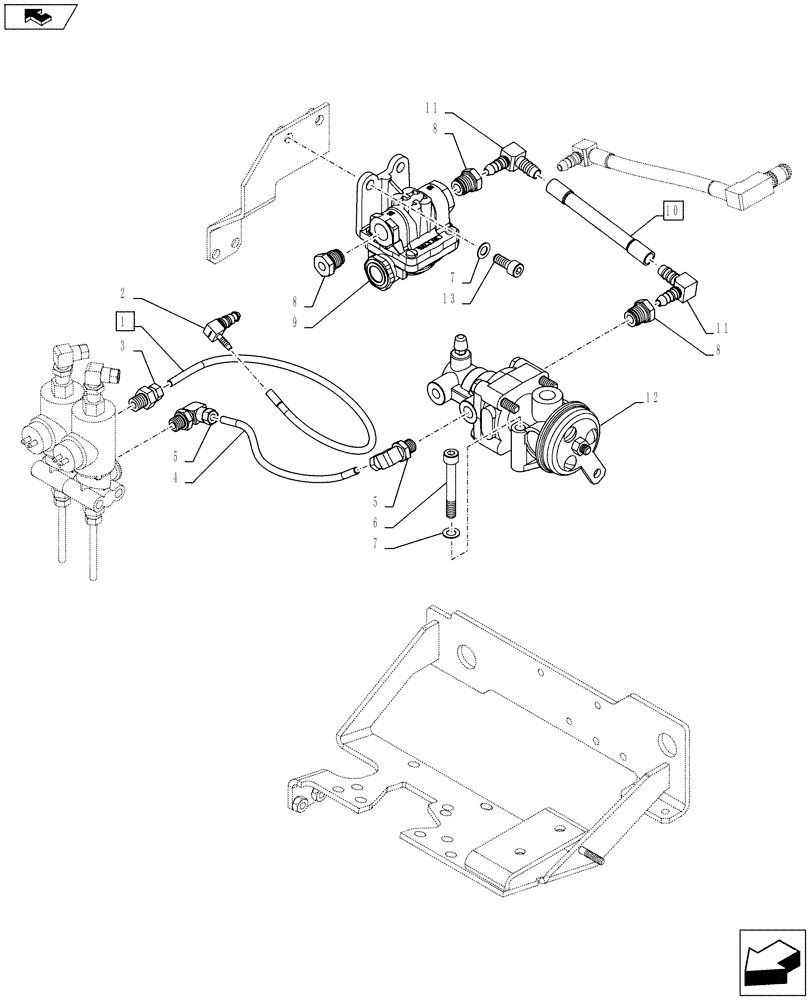

Запчасти Case IH PUMA 170 (33.224.0102[10]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - CONTROL VALVE AND RELEVANT PARTS (VAR. 743965-743966-743967) (33) - BRAKES & CONTROLS

1

84157675

FLEXIBLE HOSE,436.00 mm

ASSY, Contains Ref. 2

1шт.

2

82036158

ELBOW,9.1mm OD x 31.5mm, 6x1Tube

1шт.

3

82006828

ADAPTER

1шт.

4

87580708

TUBE,4 mm ID x 6 mm OD x 253 mm L

1шт.

5

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

2шт.

6

14308934

HEX SOC SCREW,M8 x 1.25 x 60mm, Cl 10.9

2шт.

7

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

8

87588079

HYD CONNECTOR,M16 x 1.5

3шт.

9

84157669

VALVE

1шт.

10

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

ASSY, Contains Ref. 11

1шт.

11

87588080

90 ELBOW,NG8 x 12mm D

2шт.

12

82030571

TRAILER BRAKE VALVE

1шт.

13

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
