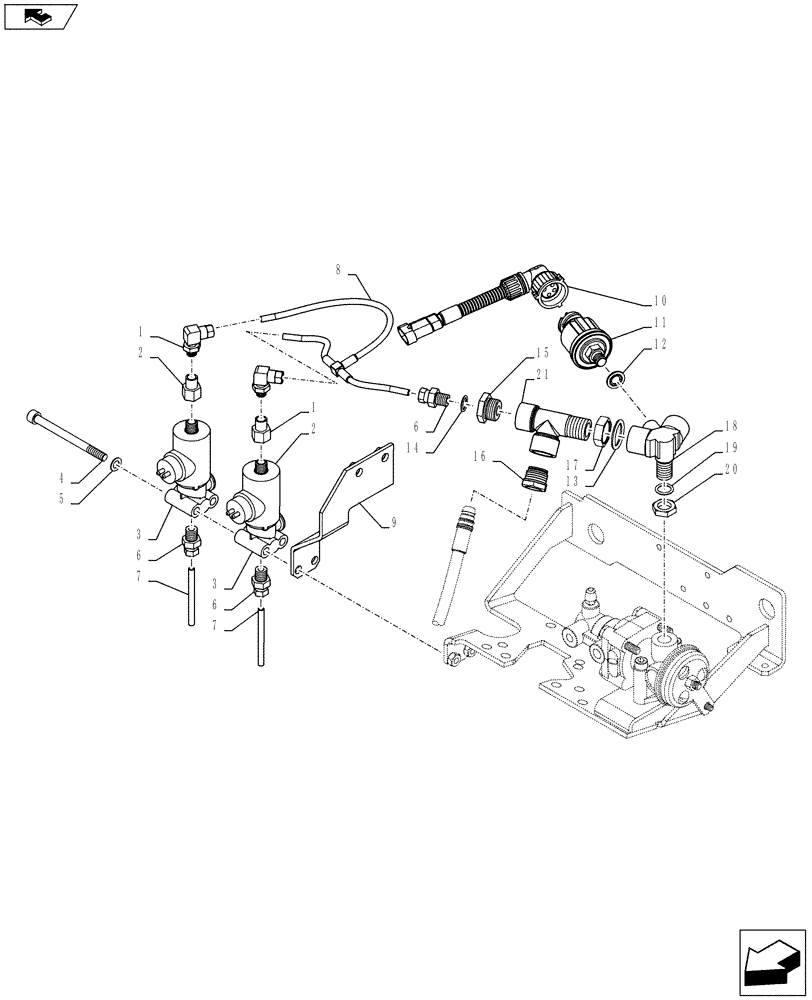

Запчасти Case IH PUMA 170 (33.224.0102[09]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - CONTROL VALVE AND RELEVANT PARTS (VAR.743965-743966-743967) (33) - BRAKES & CONTROLS

1

87678122

HYD CONNECTOR,M10 x 1

2шт.

2

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

3

84359255

SOLENOID VALVE,1.41A, 12 VDC,

2шт.

4

14302124

HEX SOC SCREW,M8 x 1.25 x 100mm, Cl 8.8

2шт.

5

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

6

82006828

ADAPTER

3шт.

7

82019793

HOSE,6.00mm OD x 70.00mm

2шт.

8

84358408

FLEXIBLE HOSE

1шт.

9

84143167

SUPPORT

1шт.

10

87564372

WIRE HARNESS

1шт.

11

87564377

SENSOR,M12 x 1.5

1шт.

12

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

13

82039003

O-RING

1шт.

14

82019799

O-RING

1шт.

15

87570885

ADAPTER

1шт.

16

82034157

ADAPTER

1шт.

17

82039004

LOCK NUT

1шт.

18

87588083

HYD CONNECTOR,M16 x 1.5

1шт.

19

82019797

O-RING,2.5mm Thk x 14mm ID

1шт.

20

82019796

LOCK NUT

1шт.

21

87714794

HYD CONNECTOR,M22 x 1.5

1шт.
