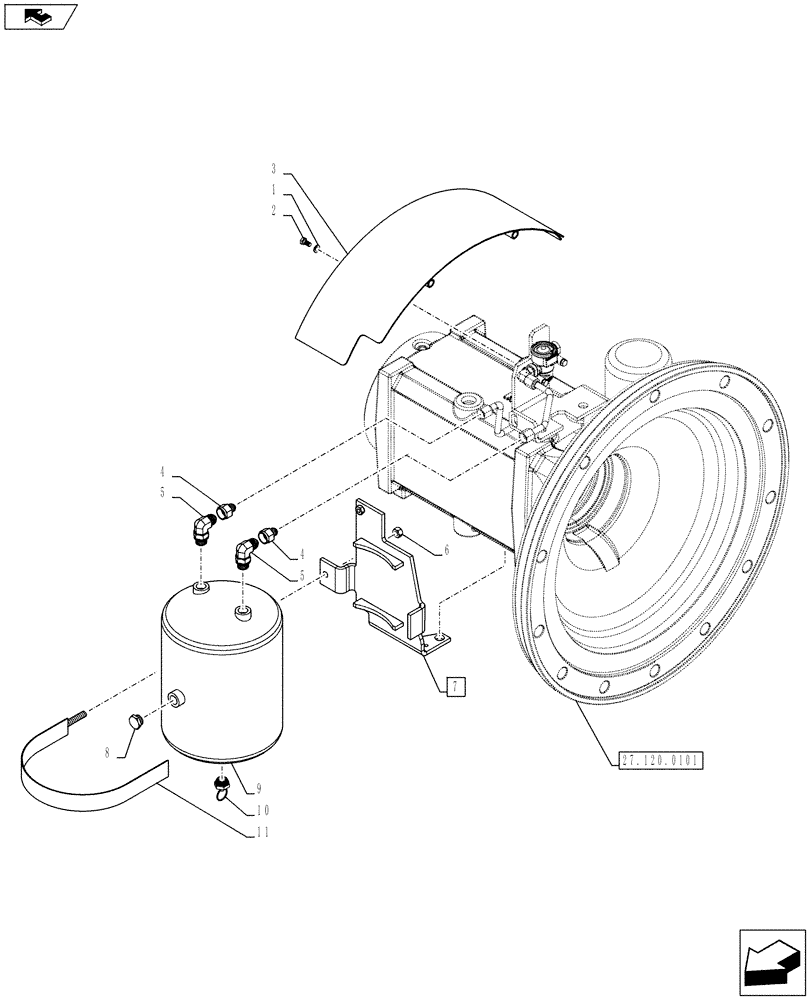

Запчасти Case IH PUMA 170 (33.224.0102[05]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - RIGHT AIR RESERVOIR (VAR. 743922) (33) - BRAKES & CONTROLS

1

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

3

87667105

GUARD

1шт.

4

87029966

REDUCER,7/8" - 14 JIC x 3/4" - 16 JIC

2шт.

5

5161351

90 ELBOW,Male, M22 x 1.5, ORB x 7/8"-14, 37 Degree Fl

2шт.

6

100018

NUT,M12, Cl 8, ZND

1шт.

7

84286331

SUPPORT

ASSY, Contains Ref. 6, 11

1шт.

8

82014913

PLUG,M22 x 1.5 x 9mm L

2шт.

9

84170918

AIR RESERVOIR

1шт.

10

82004266

DRAIN

1шт.

11

84170358

1шт.
