Запчасти Case IH PUMA 170 (33.220.0203[01]) - ABS SYSTEM - HYDRAULIC TRAILER BRAKE (ITALY) - BRAKING SYSTEM (VAR.743980 / 720418) (33) - BRAKES & CONTROLS

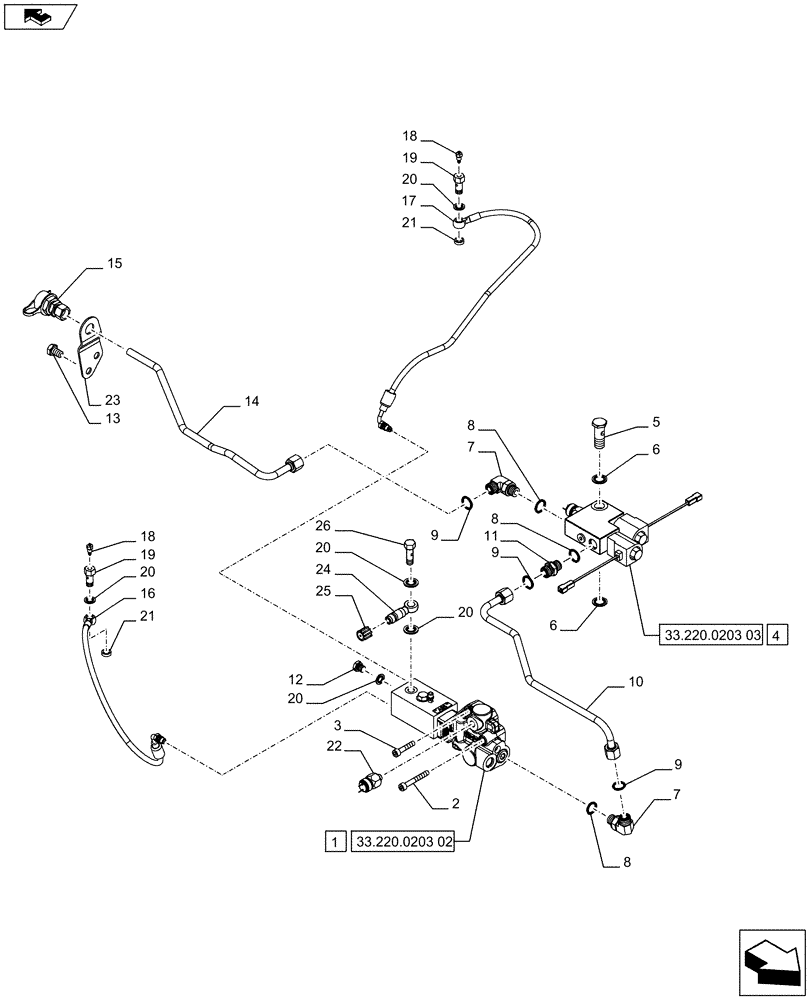

Схема запчастей Case IH PUMA 170 - (33.220.0203[01]) - ABS SYSTEM - HYDRAULIC TRAILER BRAKE (ITALY) - BRAKING SYSTEM (VAR.743980 / 720418) (33) - BRAKES & CONTROLS
22
13
18
20
15
7
20
20
26
9
20
8
25
7
20
8
6
21
12
9
4
17
16
24
2
6
10
33.220.0203 02
9
21
11
19
14
19
1
5
home
33.220.0203 03
23
18
3
8

Артикул

Название

Примечание

Количество

1

47467922

BRAKE VALVE

ASSY

1шт.

2

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

3

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

4

5196175

BRAKE VALVE

ASSY

1шт.

5

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

6

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

7

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Incl. 8, 9

1шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

3шт.

9

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

3шт.

10

87396169

PIPE

1шт.

11

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

Incl. 8, 9

1шт.

12

47131496

PLUG,Hex, M12 x 1

12 x 1

2шт.

13

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

84554422

HYD TUBE

1шт.

15

44015354

QUICK MALE COUPLING

1шт.

16

87635543

HYDRAULIC HOSE

Right Brake

1шт.

17

87635545

HYDRAULIC HOSE,4.75mm ID x 820mm L

Left Brake

1шт.

18

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

19

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

20

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

5шт.

21

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

22

87604423

SWITCH ASSY

1шт.

23

5196322

BRACKET

1шт.

24

82030175

BANJO FITTING,M8 x 1 x 53mm

Incl. 25

1шт.

25

44995074

PLUG,M8 x 1.0

1шт.

26

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

Выбрано товаров: 26
