Запчасти Case IH PUMA 170 (33.220.0101[01]) - ABS SYSTEM - BRAKING LOGIC VALVE FOR CLOSED CENTRE LOAD SENSING HYD. - BRAKE LOGIC VALVE AND PIPES (VAR.743982 / 743896) (33) - BRAKES & CONTROLS

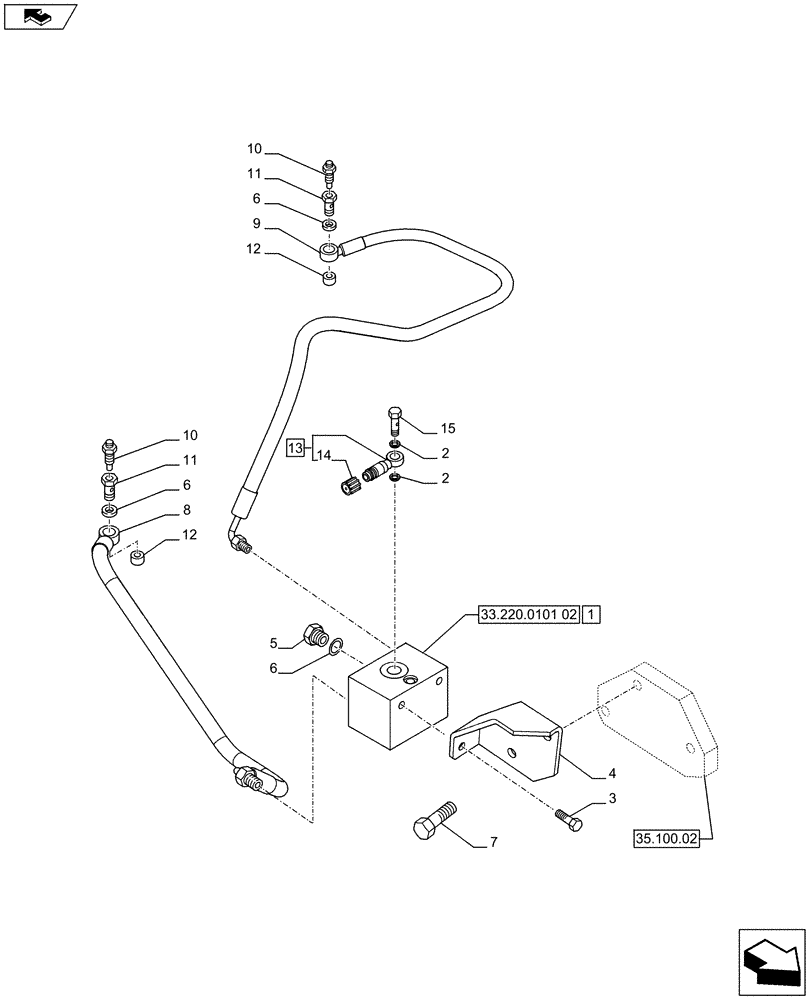

Схема запчастей Case IH PUMA 170 - (33.220.0101[01]) - ABS SYSTEM - BRAKING LOGIC VALVE FOR CLOSED CENTRE LOAD SENSING HYD. - BRAKE LOGIC VALVE AND PIPES (VAR.743982 / 743896) (33) - BRAKES & CONTROLS
1
10
10
12
12
6
2
9
5
home
33.220.0101 02
6
11
6
3
4
2
14
8
13
7
35.100.02
15
11

Артикул

Название

Примечание

Количество

1

84565280

BRAKE VALVE

1шт.

2

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

3

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

4

87323097

BRACKET

1шт.

5

47131496

PLUG,Hex, M12 x 1

1.5 x 8

1шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

3шт.

7

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

2шт.

7

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

1шт.

8

87635543

HYDRAULIC HOSE

Right Brake

1шт.

9

87635545

HYDRAULIC HOSE,4.75mm ID x 820mm L

Left Brake

1шт.

10

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

11

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

12

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

13

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

14

44995074

PLUG,M8 x 1.0

1шт.

15

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

Выбрано товаров: 16
