Запчасти Case IH PUMA 170 (33.220.01[01]) - BRAKING LOGIC VALVE FOR CLOSED CENTRE LOAD SENSING HYD. - BRAKE LOGIC VALVE AND PIPES (VAR.743981 / 743896) (33) - BRAKES & CONTROLS

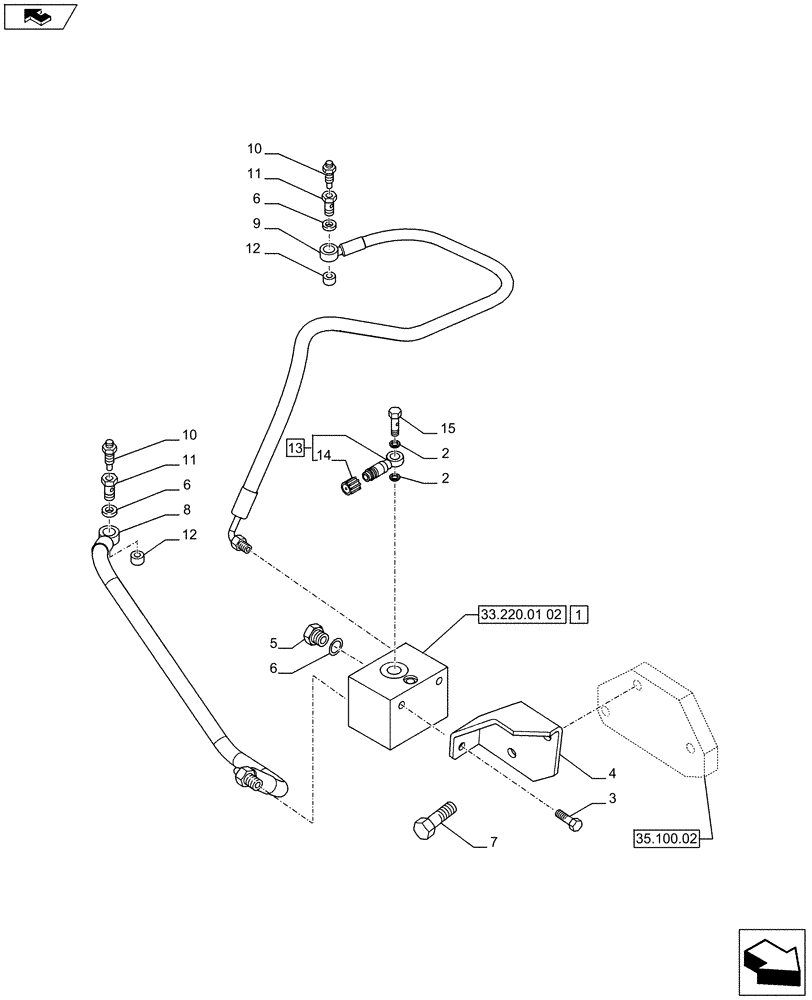

Схема запчастей Case IH PUMA 170 - (33.220.01[01]) - BRAKING LOGIC VALVE FOR CLOSED CENTRE LOAD SENSING HYD. - BRAKE LOGIC VALVE AND PIPES (VAR.743981 / 743896) (33) - BRAKES & CONTROLS
home
2
10
4
2
6
9
6
33.220.01 02
8
14
12
7
13
10
6
35.100.02
5
11
3
11
15
12
1

Артикул

Название

Примечание

Количество

1

87323483

HEAD

1шт.

2

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

3

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

4

87323097

BRACKET

1шт.

5

47131496

PLUG,Hex, M12 x 1

1.5 x 8

1шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

3шт.

7

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

2шт.

7

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

1шт.

8

87635543

HYDRAULIC HOSE

Right Brake

1шт.

9

87635545

HYDRAULIC HOSE,4.75mm ID x 820mm L

Left Brake

1шт.

10

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

11

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

12

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

13

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

14

44995074

PLUG,M8 x 1.0

1шт.

15

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

Выбрано товаров: 16
