(33.204.14[01]) - 4WD AXLE WITH BRAKE - FRONT BRAKE VALVE PIPE - C7091 (VAR.728195-728212)

Запчасти Case IH PUMA 170 (33.204.14[01]) - 4WD AXLE WITH BRAKE - FRONT BRAKE VALVE PIPE - C7091 (VAR.728195-728212) (33) - BRAKES & CONTROLS

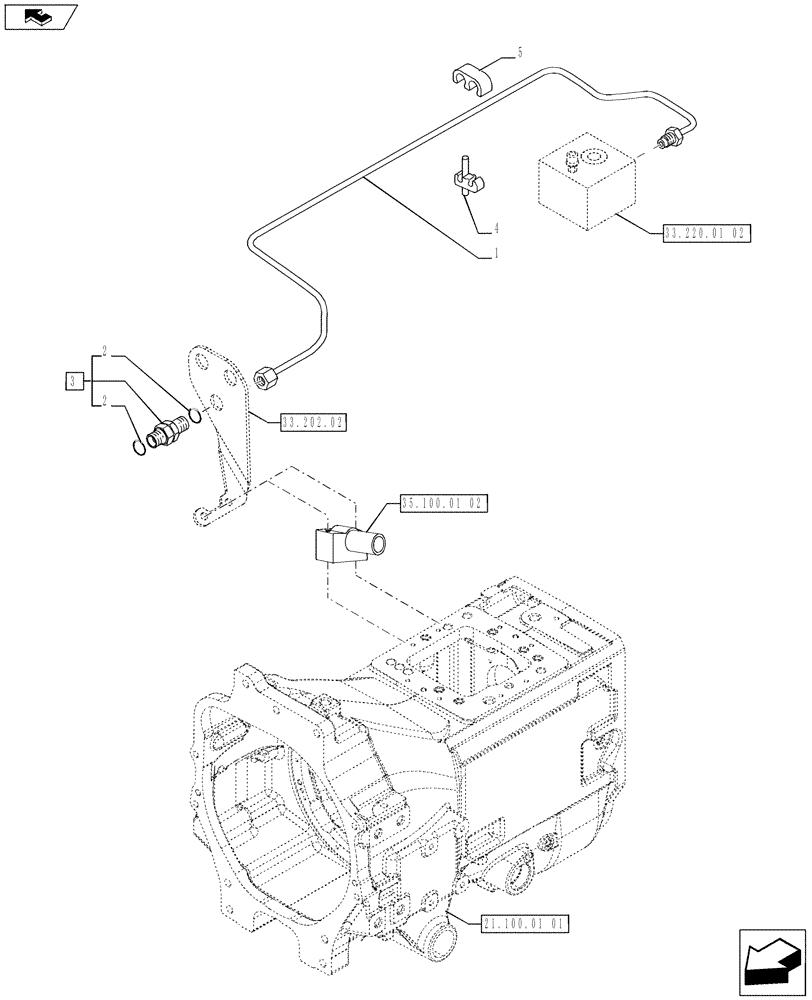

Схема запчастей Case IH PUMA 170 - (33.204.14[01]) - 4WD AXLE WITH BRAKE - FRONT BRAKE VALVE PIPE - C7091 (VAR.728195-728212) (33) - BRAKES & CONTROLS
1
33.202.02
4
5
3
35.100.01 02
33.220.01 02
2
21.100.01 01
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87316332

TUBE

1шт.

2

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.

3

47136517

HYD CONNECTOR,ORFS 11/16"-16

Contains Ref. 2

1шт.

4

14575280

SPRING CLIP

2шт.

5

82035645

CLIP,8mm ID

2шт.

Выбрано товаров: 5
