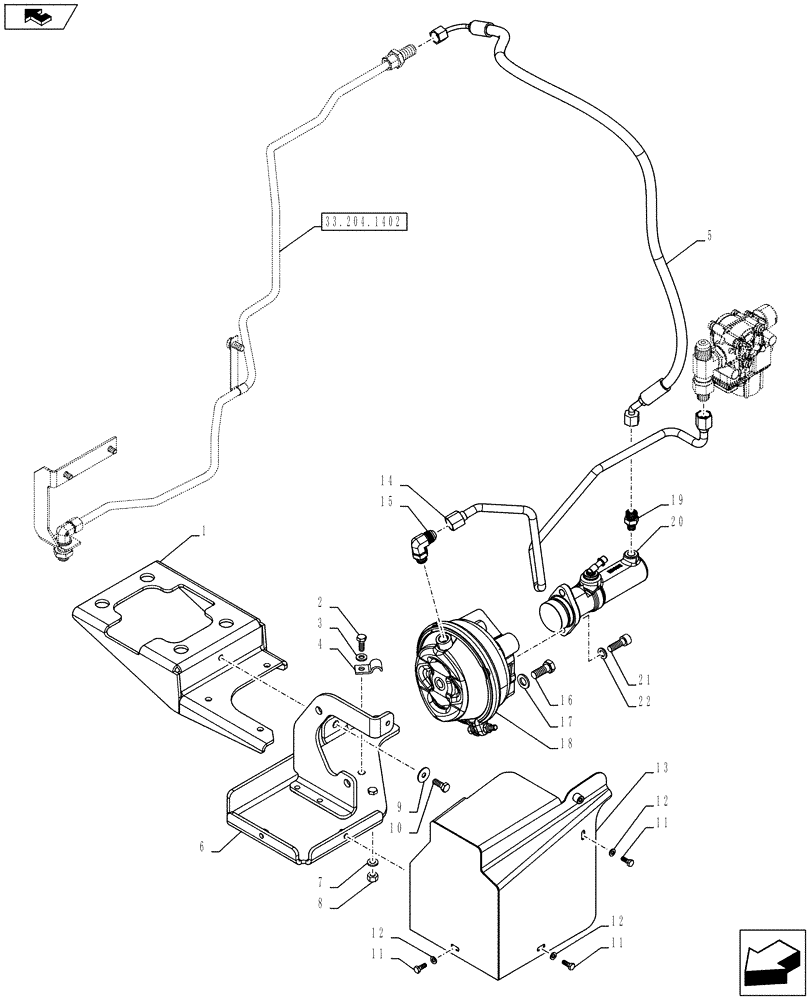

Запчасти Case IH PUMA 170 (33.202.04[04]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - FRONT MASTER CYLINDER AND CONVERTER (VAR.743922) (33) - BRAKES & CONTROLS

1

84530369

BRACKET

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

3

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

4

44903268

RETAINER COLLAR,12mm ID

1шт.

5

84427438

HYDRAULIC HOSE

1шт.

6

47370301

BRACKET

1шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

9

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

1шт.

10

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

11

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

12

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

13

84526225

COVER

1шт.

14

84533853

HYD TUBE

1шт.

15

84553346

HYD CONNECTOR,M16 x 1.5

1шт.

16

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

17

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

18

47370210

CONVERTER

1шт.

19

84593999

HYD CONNECTOR,11/16-16 ORFS, M12 x 1.5 ORB

1шт.

20

47403012

MASTER CYLINDER,48.3mm Stroke

1шт.

21

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

2шт.

22

12638621

WASHER,M10 x 18 x 2

2шт.
