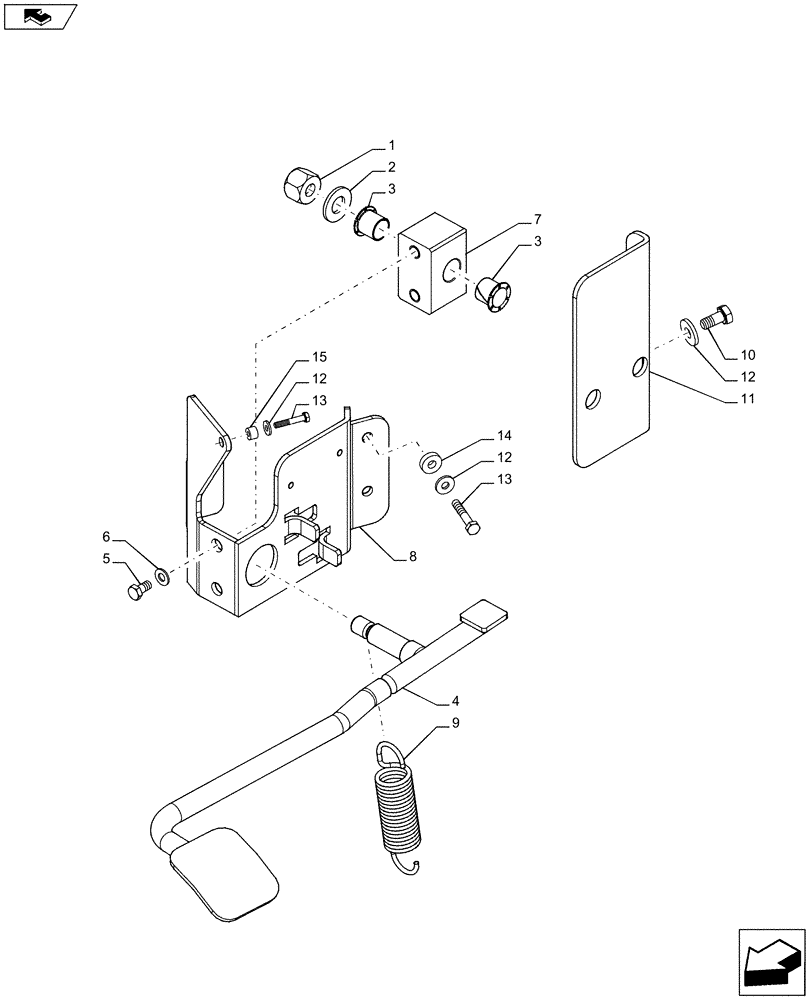

Запчасти Case IH PUMA 170 (33.202.0301[01A]) - EXHAUST BRAKE - PEDAL AND ASSOCIATED PARTS (VAR.743040) - D9033 (33) - BRAKES & CONTROLS

1

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

3

82002289

BUSHING,12mm ID x 13.6mm OD x 12.8mm L

2шт.

4

87640782

PEDAL

1шт.

5

412555

2шт.

6

14496507

2шт.

7

47057310

CONNECTING BLOCK

1шт.

8

47370313

BRACKET

1шт.

9

47413742

1шт.

10

87020138

BOLT,Hex, M6 x 16mm, Cl 8.8

3шт.

11

47413734

PROTECTOR

1шт.

12

12647678

5шт.

13

87698769

3шт.

14

12648131

WASHER,6.15mm ID x 15mm OD x 4mm Thk

2шт.

15

13604111

SPACER,6.5mm ID x 15mm OD x 10mm L

1шт.
