Запчасти Case IH PUMA 170 (33.202.0301[01]) - EXHAUST BRAKE - PEDAL AND ASSOCIATED PARTS (VAR.743040) - C9033 (33) - BRAKES & CONTROLS

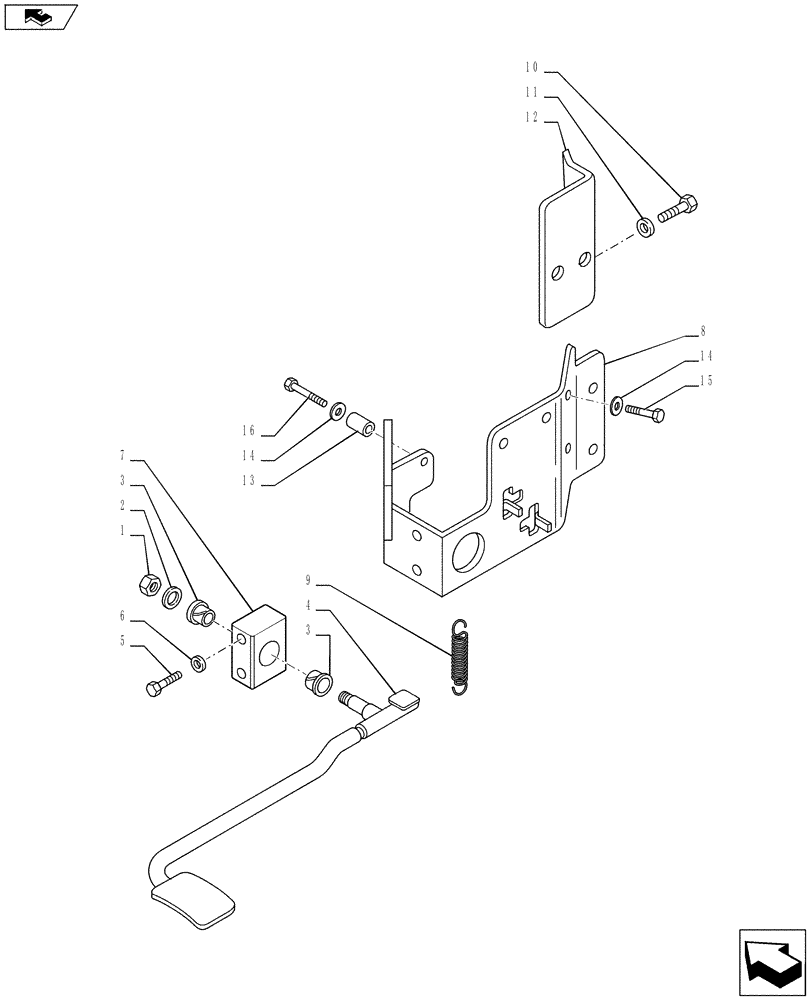

Схема запчастей Case IH PUMA 170 - (33.202.0301[01]) - EXHAUST BRAKE - PEDAL AND ASSOCIATED PARTS (VAR.743040) - C9033 (33) - BRAKES & CONTROLS
home
9
4
5
7
14
3
13
16
6
15
12
14
8
1
10
3
11
2

Артикул

Название

Примечание

Количество

1

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

3

82002289

BUSHING,12mm ID x 13.6mm OD x 12.8mm L

2шт.

4

87640782

PEDAL

1шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

6

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

47057310

CONNECTING BLOCK

1шт.

8

87636333

BRACKET

1шт.

9

5153180

SPRING,21mm OD x 84mm L

1шт.

10

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

11

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

12

87635864

PROTECTION PLATE

1шт.

13

13604111

SPACER,6.5mm ID x 15mm OD x 10mm L

1шт.

14

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

3шт.

15

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

16

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

Выбрано товаров: 16
