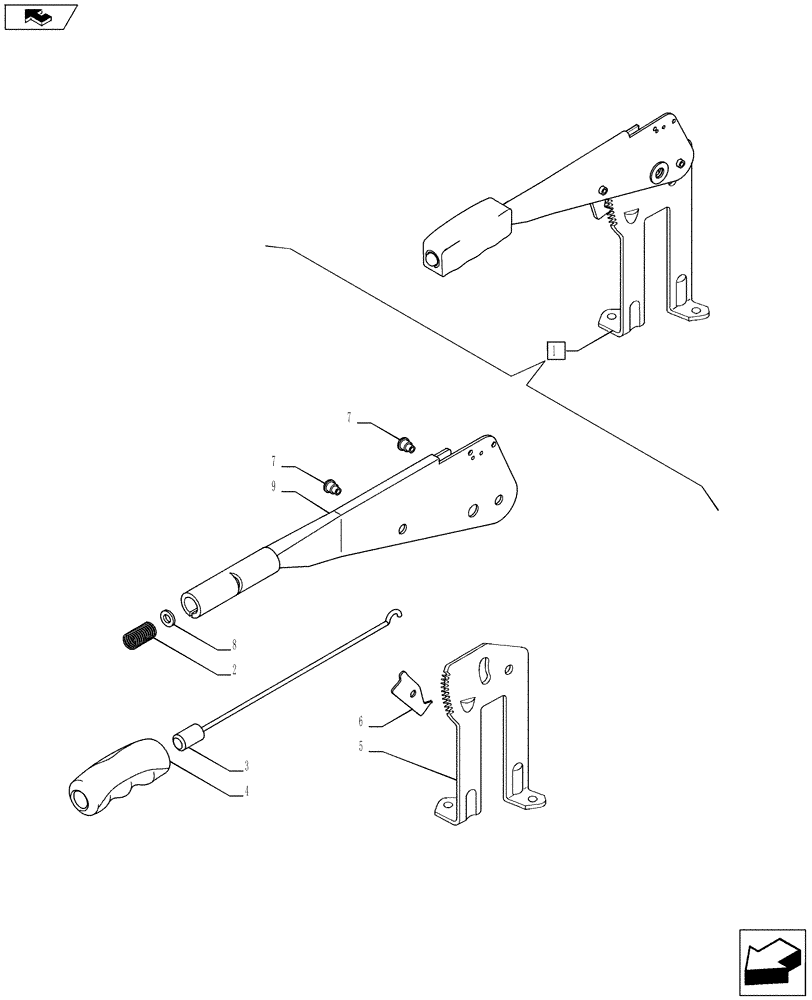

Запчасти Case IH PUMA 170 (33.110.02[02]) - HANDBRAKE CONTROL - BREAKDOWN (33) - BRAKES & CONTROLS

1

82033982

LEVER

ASSY, Contains Ref. 2-9

1шт.

2

81866091

SPRING,Type, 12.2mm OD x 40mm L

1шт.

3

81870377

BUTTON

1шт.

4

81866090

HANDLE GRIP

1шт.

5

82033923

SUPPORT

1шт.

6

82863025

PAWL,4.5mm Thk

1шт.

7

82000812

PIN,7.8mm OD x 7.4mm L

2шт.

8

81866092

WASHER,5.5mm ID x 13.4mm OD x 1.2mm Thk

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.
