Запчасти Case IH PUMA 170 (05.100.04[04]) - MAINTENANCE PARTS - BULBS (05) - SERVICE & MAINTENANCE

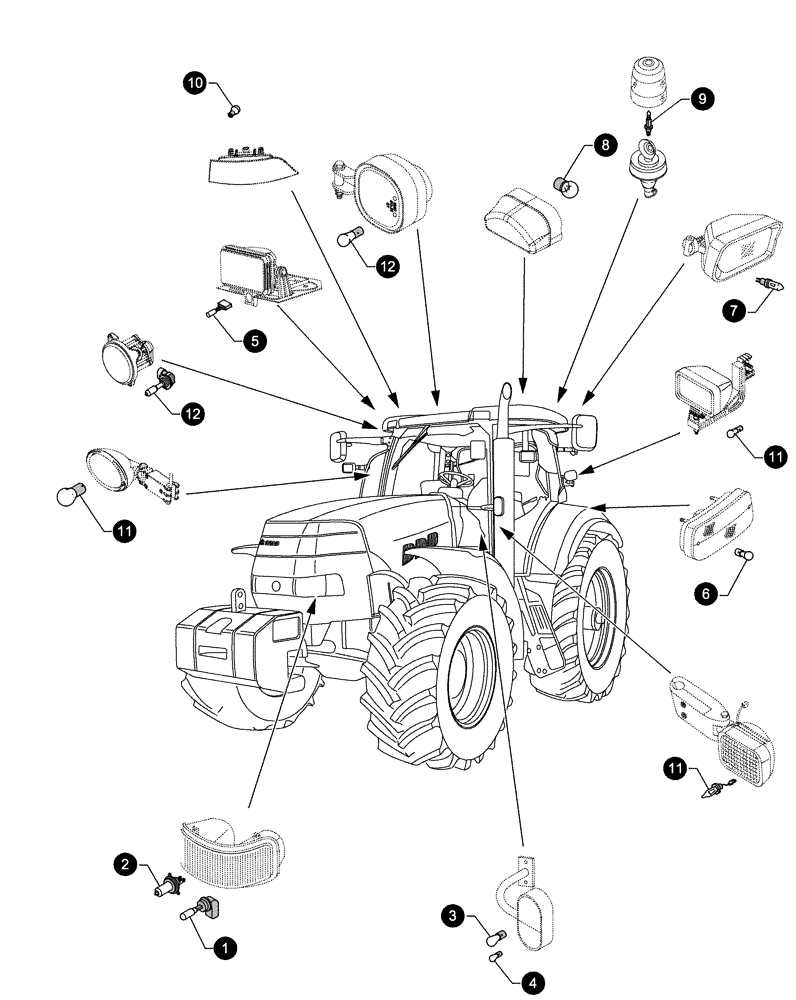

Схема запчастей Case IH PUMA 170 - (05.100.04[04]) - MAINTENANCE PARTS - BULBS (05) - SERVICE & MAINTENANCE
6
7
2
12
8
3
4
1
12
11
11
10
5
11
9

Артикул

Название

Примечание

Количество

1

14152090

BULB,H4, 12V, 60/55W

H4, 12V, 60/55W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

2

84155097

BULB,Type 888, 12V, 50W

#886, 12V, 55W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR Models

1шт.

3

14148090

BULB,PY21W, 12V, 21W

PY21W, 12V, 21W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

4

1121407

BULB,R10W, 12V, 5W

R10W, 12V, 5W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

5

44995162

BULB,T-3 1/4, 12.8V, 50W

T-3 1/4, 12V, 50W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

6

14144690

BULB,P21/5W, 12V, 21/5W

P21/5W, 12V, 21/5W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

7

529068

BULB,#1156, 12V, 21W

#1156, 12V, 21W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

8

16847990

W5W, 12V, 5W

BULB,W5W, 12V, 5W

1шт.

Valid with PUMA 170-TRACTOR Models

1шт.

9

14151095

BULB,H1, 12V, 55W

H1, 12V, 55W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

10

14148190

BULB,P21W, 12V, 21W

P21W, 12V, 21W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

11

42570987

BULB,H3, 12V, 55W

H3, 12V, 55W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

12

83933661

BULB,S2, 12V, 35/35W

S2, 12V, 35/35W

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

Выбрано товаров: 24
