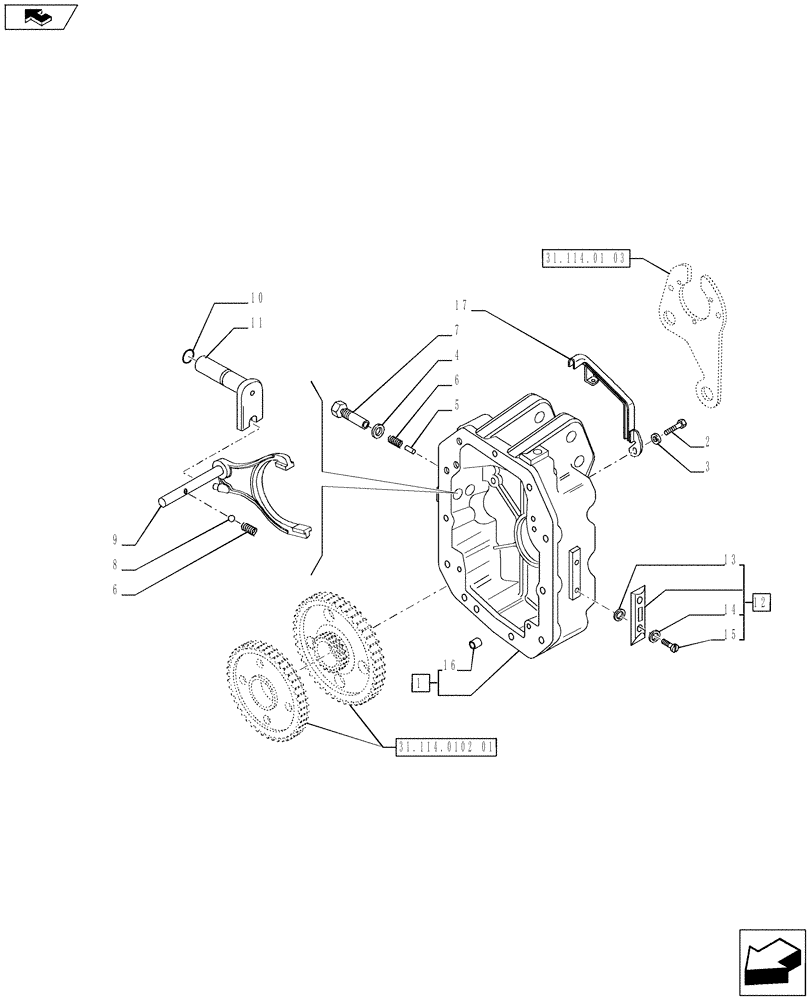

Запчасти Case IH PUMA 170 (31.114.0102[03]) - POWER TAKE-OFF 1000E/1000 RPM - COVER AND ENGAGEMENT (VAR.743336) (31) - IMPLEMENT POWER TAKE OFF

1

87558757

HOUSING

Contains Ref. 16

1шт.

2

10979414

SCREW,Hex, M6 x 10mm, Cl 5.8

M6 x 10

1шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

5

5159011

PIN,10mm OD x 20mm Thk

1шт.

6

4994342

SPRING,8mm OD x 30mm OAL

2шт.

7

5182673

CASE

1шт.

8

20063390

BALL,8.73mm OD

1шт.

9

87592700

CLUTCH FORK

1шт.

10

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

11

5182672

PIN

1шт.

12

87356021

LEVEL GAUGE

Contains Ref. 13-15

1шт.

13

87349969

RUBBER SEAL

2шт.

14

47130060

O-RING

2шт.

15

47130059

SCREW,Pan HD, M12 x 41mm

2шт.

16

44908048

BUSHING,16mm OD x 14mm L

2шт.

17

84250687

GUARD

1шт.
