Запчасти Case IH PUMA 170 (31.114.01[04]) - POWER TAKE-OFF 540E/1000 RPM - SUPPORT AND RELATED PARTS (31) - IMPLEMENT POWER TAKE OFF

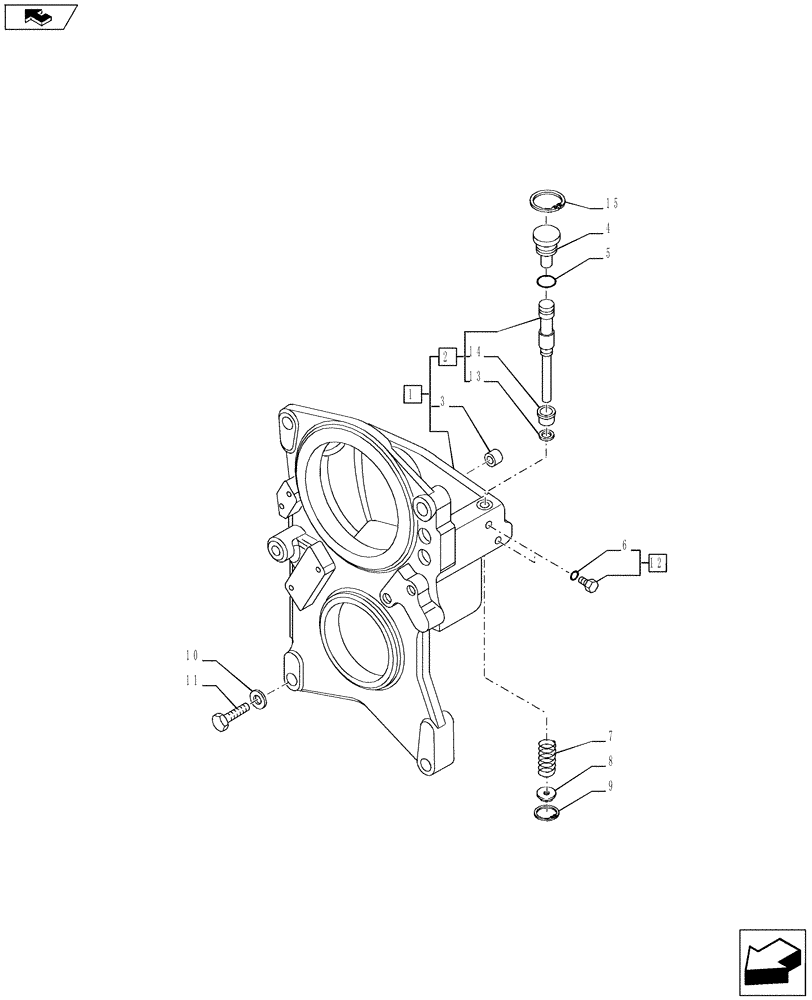

Схема запчастей Case IH PUMA 170 - (31.114.01[04]) - POWER TAKE-OFF 540E/1000 RPM - SUPPORT AND RELATED PARTS (31) - IMPLEMENT POWER TAKE OFF
12
1
2
11
7
6
home
5
14
8
13
9
3
10
15
4

Артикул

Название

Примечание

Количество

1

84295659

SUPPORT

ASSY, Contains Ref.2,3,13,14

1шт.

2

84271075

VALVE

ASSY

1шт.

3

47127805

BUSHING,12mm ID x 14mm OD x 15mm L

1шт.

4

5196030

PIN,20mm OD x 16.5mm L

1шт.

5

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

6

14437585

O-RING,8.00mm ID x 1.50mm

3шт.

7

84281722

SPRING,Compression, 15mm OD x 80mm L

1шт.

8

47127951

CAP COVER

1шт.

9

13420576

SNAP RING,M16, Int

1шт.

10

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

11

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

12

10118540

PLUG,M10 x 1 x 11, Brass

Incl. 6

2шт.

13

13397370

SNAP RING,M8, Int

1шт.

14

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

1шт.

15

47127897

SNAP RING,M21.5, Ext

1шт.

Выбрано товаров: 15
