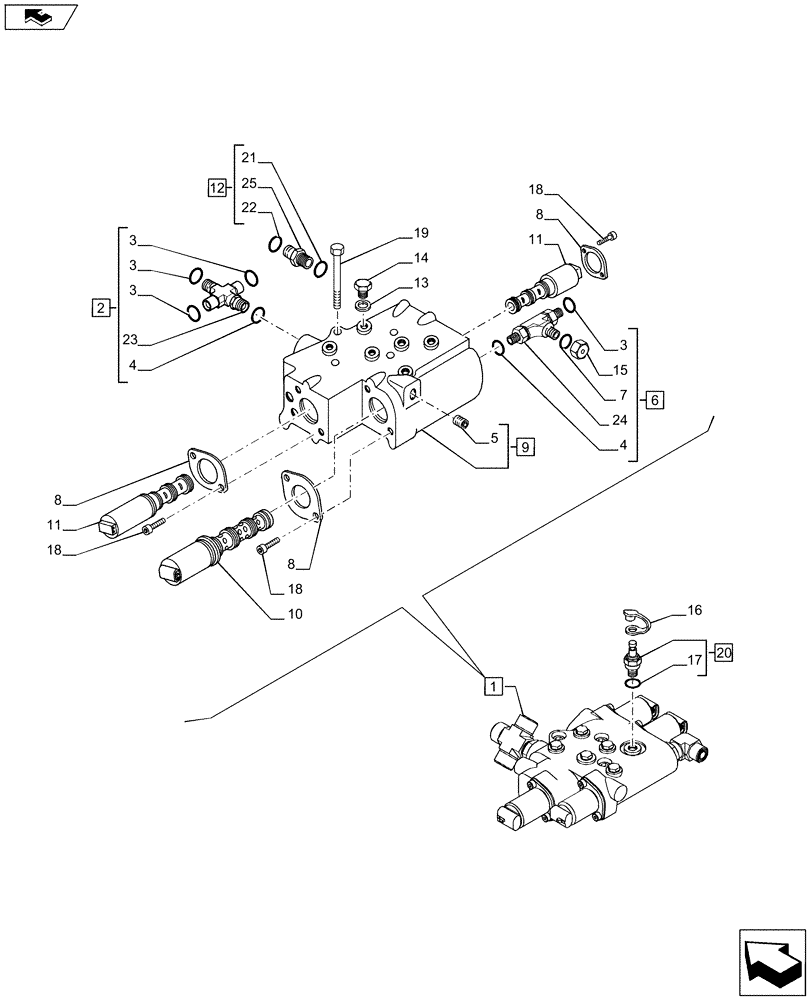

Запчасти Case IH PUMA 170 (31.104.0201[02]) - CREEPER FOR TRANSMISSION WITH ELECTRIC ENGAGEMENT - VALVE - BREAKDOWN (VAR.720146) (31) - IMPLEMENT POWER TAKE OFF

1

87525228

DISTRIBUTOR

Low Pressure

1шт.

2

5187063

HYD CONNECTOR

Contains Ref. 3,4,23

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

6шт.

6

47136372

HYD CONNECTOR,M22 x 1.5 x 88.5mm L

Contains Ref. 3,4,7,24

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

8

5194826

BRACKET

4шт.

9

87523105

VALVE BODY

Contains Ref. 5

1шт.

10

87739558

SOLENOID VALVE,14W

Green Connectors

1шт.

10

87739558R

REMAN-SOLENOID

Green Connectors

1шт.

10

87739558C

CORE-SOLENOID

Return Number

1шт.

11

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

3шт.

12

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

Contains Ref. 21,22,25

1шт.

13

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

4шт.

14

87535222

PLUG,Hex, M10 x 1 x 13mm

4шт.

15

47123020

PLUG,Hex

13/16

1шт.

16

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

17

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

18

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

19

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

20

5185423

COUPLING

Contains Ref. 17

1шт.

21

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

22

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

1шт.

24

NSS

NOT SOLD SEPARAT

1шт.

25

NSS

NOT SOLD SEPARAT

1шт.
