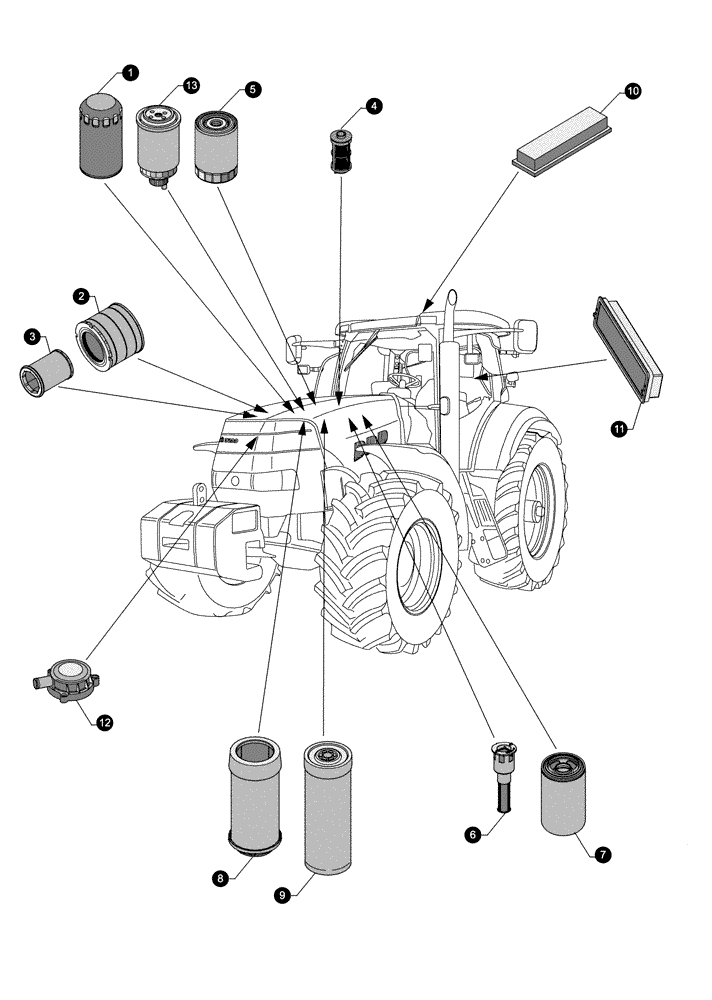

Запчасти Case IH PUMA 170 (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

1

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil, Spin On, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

2

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Main, Every 300 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

3

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Safety element, Every 300 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

4

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Precleaner, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

5

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Primary, Every 300 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

6

84363730

FILTER STRAINER

ADBLUE/DEF Tank, Every 300 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

7

84254852

FILTER

DeNOx2, Every 300 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

7

84247272

FILTER,In-Line

ADBLUE/DEF Tank, Every 300 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

8

47617638

FILTER

Hydraulic filter, Element, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

9

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Transmission/Pump, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

Valid with STD

1шт.

9

47617638

FILTER

Transmission/Pump, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

Valid with VAR. 729004, 728481 / 743616

1шт.

10

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Heating, Conditioning, w/High Profile Roof, Every 1200 hours

2шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

11

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Inner Thick Cartridge, Recirculation, Every 1200 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

12

47679344

BREATHER

Air Conditioning, Every 300 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

13

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.

13

87722692

FUEL FILTER

for Biodiesel, W/ WIF Sensor, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR, PUMA 185-TRACTOR, PUMA 200-TRACTOR, PUMA 215-TRACTOR Models

1шт.
