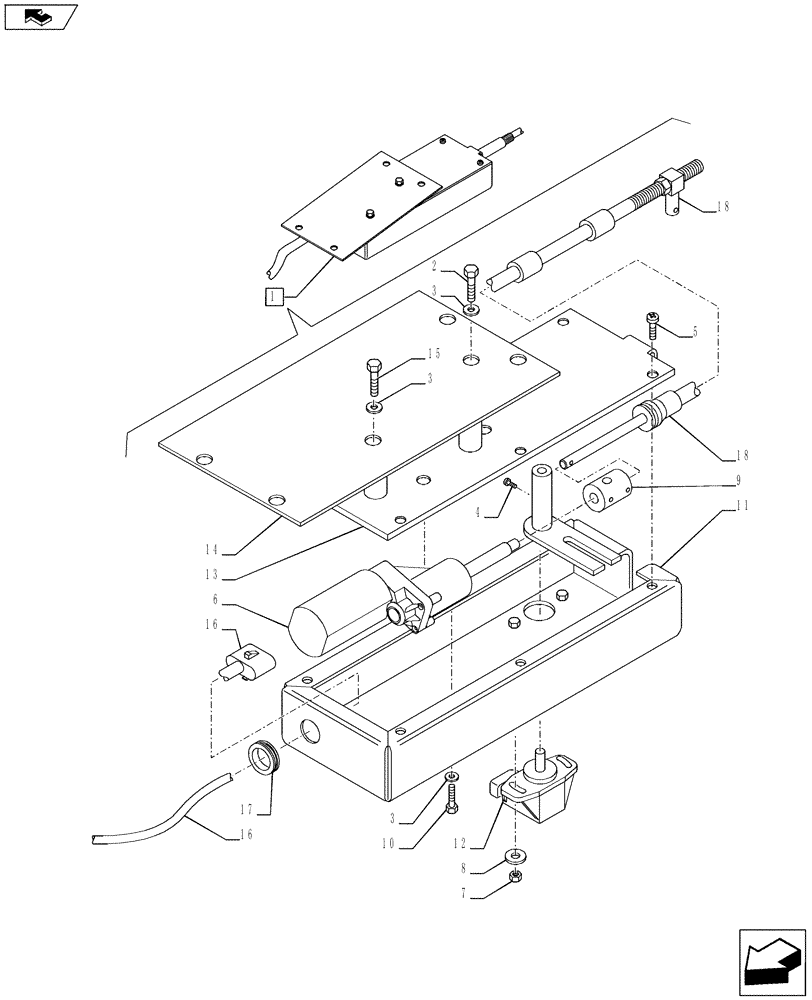

Запчасти Case IH PUMA 170 (31.104.01[02]) - SHIFTABLE PTO, CONTROLS, ACTUATOR - COMPONENTS (VAR.743356) (31) - IMPLEMENT POWER TAKE OFF

1

87750425

ACTUATOR

ASSY, Contains Ref. 2 - 18

1шт.

2

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

1шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

4

13271911

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

1шт.

5

15688004

SCREW,Pan Hd, M8 x 13

6шт.

6

87724333

ELECTRIC MOTOR

1шт.

7

100012

NUT,M4 x 0.7, Cl 8

2шт.

8

12642804

WASHER,4.15mm ID x 12mm OD x 1mm Thk

2шт.

9

87734744

FORK

1шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

11

87724340

BOX

1шт.

12

87754538

SENSOR

1шт.

13

87724337

COVER

1шт.

14

87754493

COVER

1шт.

15

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

16

87754496

WIRE HARNESS

1шт.

17

10399580

GROMMET,8mm ID x 14mm GRV ø x 20mm OD x 8mm Thk

8 x 2.5

1шт.

18

87734751

FLEXIBLE CABLE

1шт.
