Запчасти Case IH PUMA 170 (27.120.0311) - ABS SYSTEM - BAR AXLE 119" - GEARS AND SHAFT (VAR. 744435-744436) (27) - REAR AXLE SYSTEM

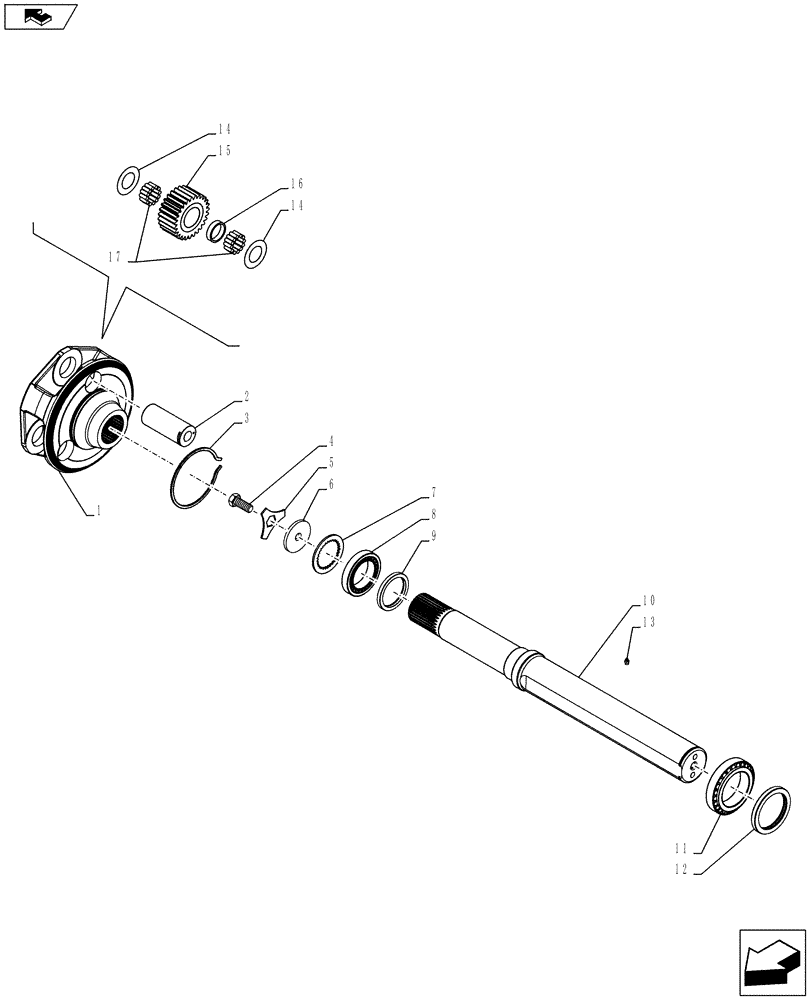

Схема запчастей Case IH PUMA 170 - (27.120.0311) - ABS SYSTEM - BAR AXLE 119" - GEARS AND SHAFT (VAR. 744435-744436) (27) - REAR AXLE SYSTEM
15
13
9
4
2
10
12
5
17
7
16
8
6
14
3
14
home
11
1

Артикул

Название

Примечание

Количество

1

84523692

PINION CARRIER

2шт.

2

5136130

PIN,62.4mm OD x 134mm L

6шт.

3

5136132

CIRCLIP,4mm Thk

D=175

2шт.

4

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

5

5124397

LOCKING PLATE

2шт.

6

84299173

SPECIAL WASHER

2шт.

7

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

8

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

85x130x29

2шт.

9

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

2шт.

10

5199221

MAIN SHAFT

2шт.

11

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

2шт.

12

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

2шт.

13

13407211

LUBE NIPPLE,M10 x 1

2шт.

14

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

15

87558449

IDLER PINION

6шт.

16

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

2шт.

17

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

62.4x76.4x32

6шт.

Выбрано товаров: 17
