Запчасти Case IH PUMA 170 (27.120.0303) - BAR AXLE 98" - GEARS AND SHAFT (VAR.728437-720437 / 743603) (27) - REAR AXLE SYSTEM

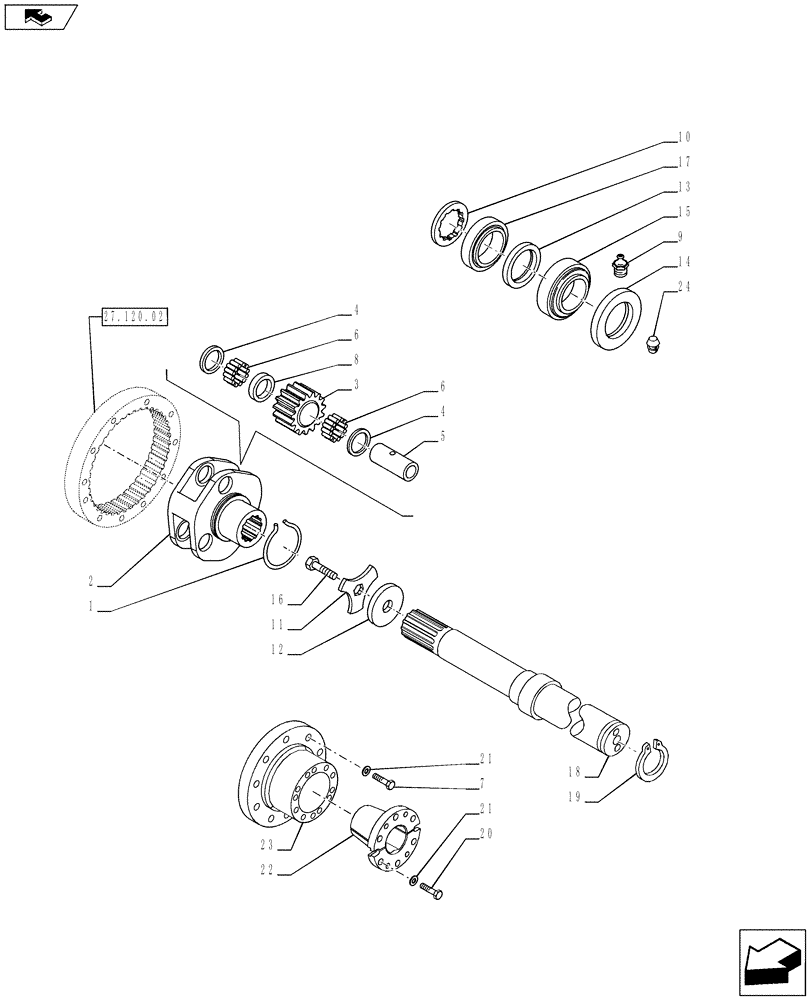

Схема запчастей Case IH PUMA 170 - (27.120.0303) - BAR AXLE 98" - GEARS AND SHAFT (VAR.728437-720437 / 743603) (27) - REAR AXLE SYSTEM
6
21
11
12
1
15
5
23
2
16
14
4
17
20
6
24
7
4
19
27.120.02
home
10
21
9
3
18
22
13
8

Артикул

Название

Примечание

Количество

1

5136132

CIRCLIP,4mm Thk

2шт.

2

5165494

SUPPORT

2шт.

3

87558449

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

Contains Ref. 7

6шт.

7

15225924

BOLT,Hex, M22 x 2.5 x 60mm, Cl 8.8

20шт.

8

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

84299173

SPECIAL WASHER

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

2шт.

14

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

2шт.

15

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

2шт.

16

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

2шт.

18

5198565

SHAFT

98"

2шт.

19

11082174

CIRCLIP,105mm OD, DAC

D= 105

2шт.

20

87688508

BOLT,Hex, M22 x 2.5 x 90mm, Cl 8.8

12шт.

VAR.728437 Bar Axle 98" for Steel Wheels

1шт.

20

11125324

BOLT,Hex, M20 x 80, 8.8

, Serial Range: -C7400

12шт.

VAR.720437 Bar Axle 98" for Cast Wheels

1шт.

20

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

, Start Serial: D7400

12шт.

VAR.720437 Bar Axle 98" for Cast Wheels

1шт.

21

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

12шт.

VAR.720437 Bar Axle 98" for Cast Wheels

1шт.

21

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

1шт.

22

5198567

WEDGE

2шт.

VAR.720437 Bar Axle 98" for Cast Wheels

1шт.

23

47126431

HUB

2шт.

VAR.728437 Bar Axle 98" for Steel Wheels

1шт.

24

81865567

PLUG,M18.5 Hole

2шт.
