Запчасти Case IH PUMA 170 (27.120.02) - FINAL DRIVE, GEARS AND SHAFTS (27) - REAR AXLE SYSTEM

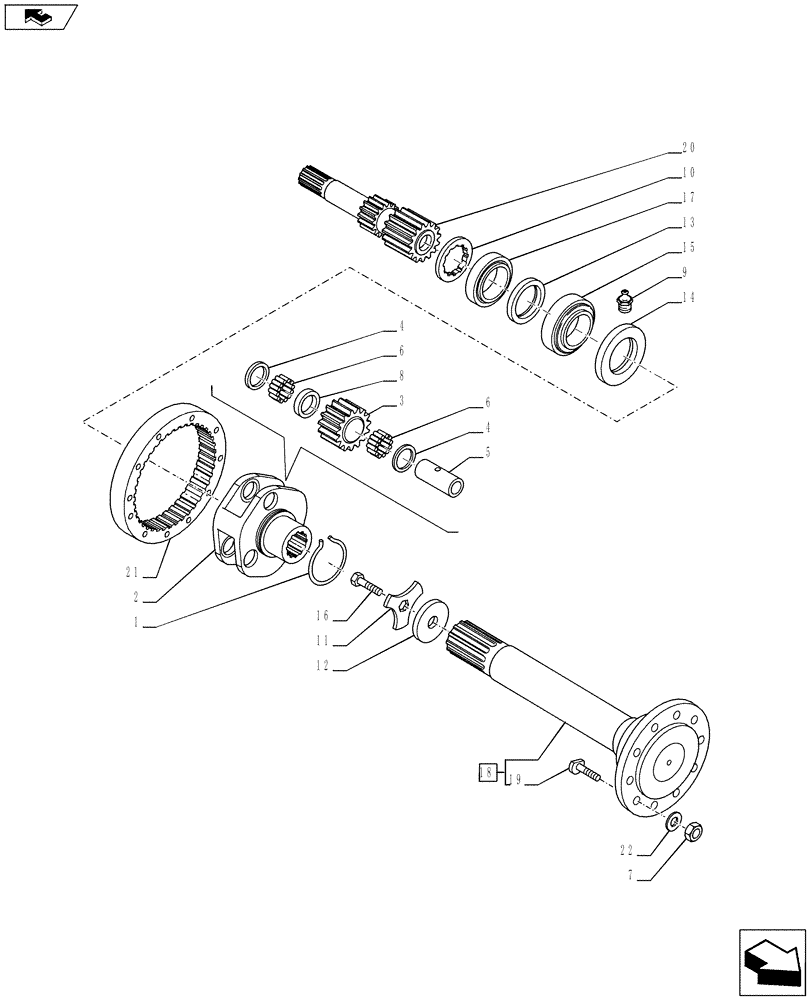

Схема запчастей Case IH PUMA 170 - (27.120.02) - FINAL DRIVE, GEARS AND SHAFTS (27) - REAR AXLE SYSTEM
7
11
3
4
21
4
home
18
5
8
1
13
12
6
17
14
22
15
16
19
20
9
6
10
2

Артикул

Название

Примечание

Количество

1

5136132

CIRCLIP,4mm Thk

2шт.

2

5165494

SUPPORT

2шт.

3

87558449

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

10719824

NUT,M22 x 10, DAC

20шт.

8

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

84299173

SPECIAL WASHER

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

2шт.

14

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

2шт.

15

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

2шт.

16

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

2шт.

18

87307106

WHEEL SHAFT

Contains Ref. 19

2шт.

19

87307103

WHEEL BOLT,M22 x 2.5 x 91mm

M22 x 2.5

10шт.

20

87558448

GEAR SHAFT

2шт.

21

87307352

RING GEAR

2шт.

22

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

20шт.

Выбрано товаров: 22
