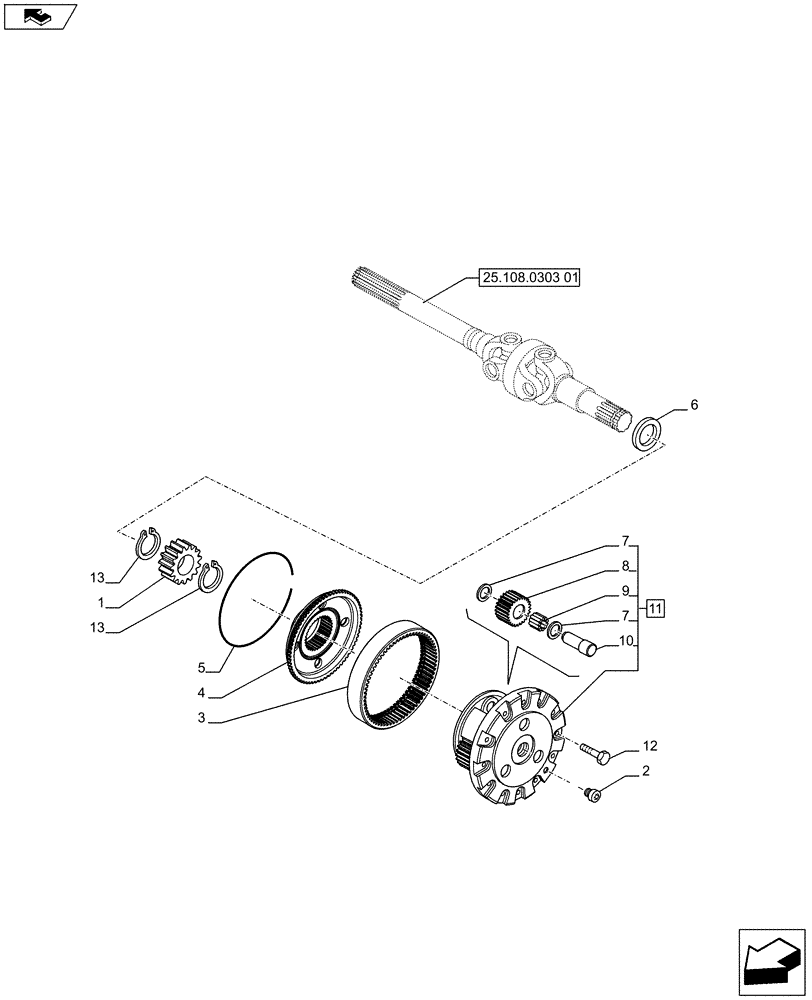

Запчасти Case IH PUMA 170 (25.108.0406[01]) - FRONT AXLE - EPICYCLICAL FINAL DRIVE (25) - FRONT AXLE SYSTEM

1

84262815

PLANETARY GEAR

2шт.

2

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1

2шт.

3

5102130

RING GEAR

2шт.

4

5141691

DISC

2шт.

5

4986355

CIRCLIP

D=265

2шт.

6

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

45 x 65 x 27

2шт.

7

4998022

THRUST WASHER,32mm ID x 55mm OD x 0.8mm Thk

6шт.

8

5102132

PLANETARY GEAR

3шт.

9

5101692

NEEDLE BEARING,31.9mm ID x 41.9mm OD x 35.5mm W

Roller (Q.ty=23 ) 31.8 x 41.9 x 35.5

3шт.

10

5181056

PIN,35mm OD x 75.5mm L

3шт.

11

5181054

CARRIER

Contains Ref. 7-10

2шт.

12

14274634

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

24шт.

13

5123651

SNAP RING,36mm, External

6шт.
