(25.108.03[01]) - FRONT AXLE - AXLE SHAFT ARTICULATED (VAR.720463)

Запчасти Case IH PUMA 170 (25.108.03[01]) - FRONT AXLE - AXLE SHAFT ARTICULATED (VAR.720463) (25) - FRONT AXLE SYSTEM

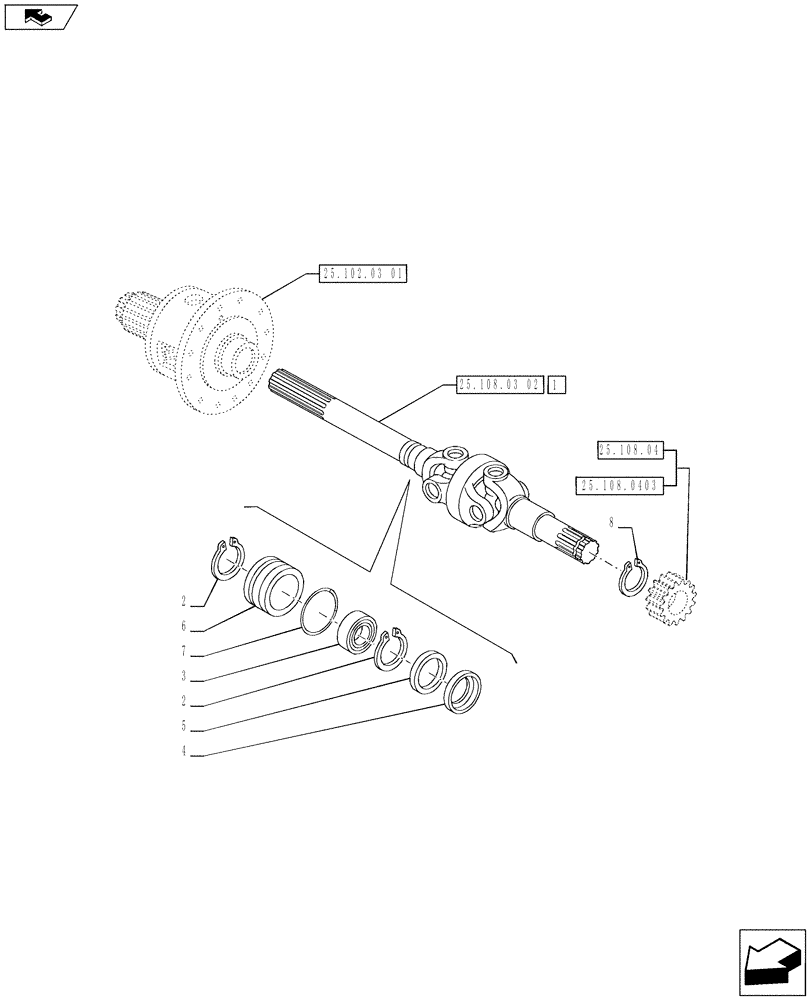

Схема запчастей Case IH PUMA 170 - (25.108.03[01]) - FRONT AXLE - AXLE SHAFT ARTICULATED (VAR.720463) (25) - FRONT AXLE SYSTEM
7
1
25.108.03 02
25.108.0403
25.108.04
25.102.03 01
home
2
2
6
8
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84184133

AXLE-SHAFT, ARTICULA

LH

1шт.

1

84184130

AXLE-SHAFT, ARTICULA

RH

1шт.

2

11061376

SNAP RING,M68, Int

4шт.

3

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

4

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

45 x 60 x 16

2шт.

6

84181579

BUSHING,60mm ID x 95mm OD x 52mm L

2шт.

7

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

2шт.

8

5123651

SNAP RING,36mm, External

2шт.
