Запчасти Case IH PUMA 170 (25.108.0101[01]) - FRONT AXLE WITH BRAKES - STEERING KNUCKLES AND HUBS - C7091(VAR.728195-728212) (25) - FRONT AXLE SYSTEM

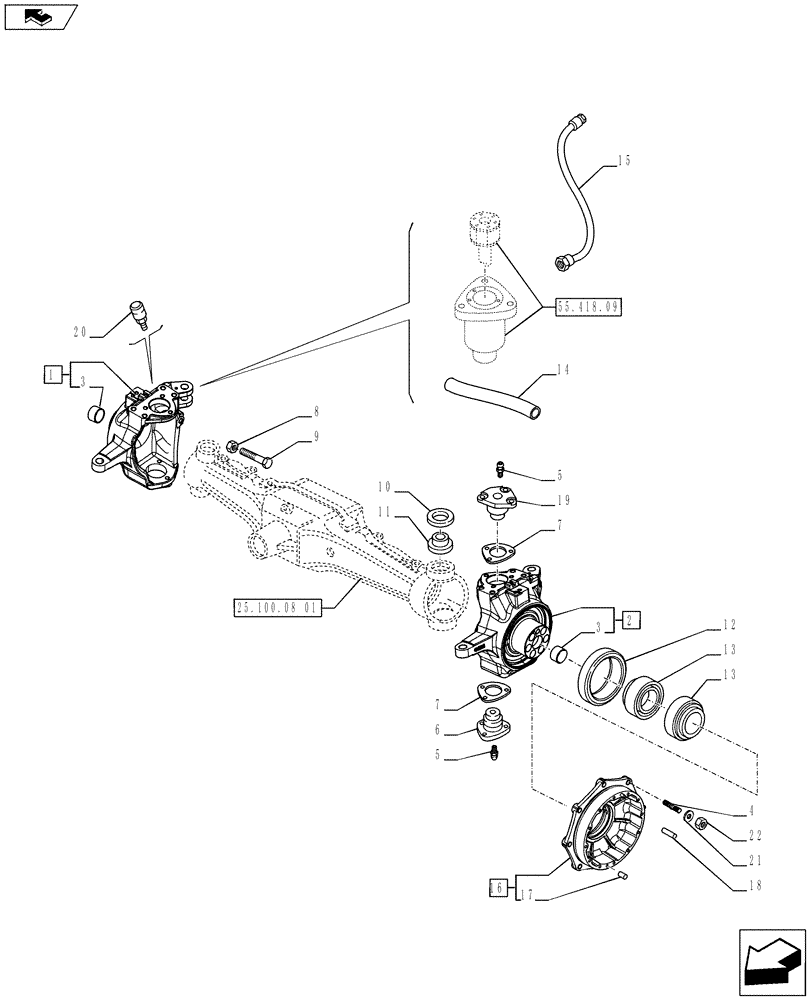

Схема запчастей Case IH PUMA 170 - (25.108.0101[01]) - FRONT AXLE WITH BRAKES - STEERING KNUCKLES AND HUBS - C7091(VAR.728195-728212) (25) - FRONT AXLE SYSTEM
21
18
16
4
2
8
6
5
7
55.418.09
25.100.08 01
3
5
13
14
7
10
22
home
15
11
12
9
3
1
13
20
19
17

Артикул

Название

Примечание

Количество

1

84263790

STEERING KNUCKLE

ASSY, RH, Contains Ref. 3

1шт.

2

84263793

STEERING KNUCKLE,LH

ASSY, LH, Contains Ref. 3

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

4

87618916

STUD

16шт.

5

13407211

LUBE NIPPLE,M10 x 1

3шт.

6

87382384

BALL STUD

2шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

7

5137116

SHIM,70.5mm ID x 115mm OD x 0.2mm Thk

0.20mm Thk

1шт.

7

5137117

SHIM,70.5mm ID x 115mm OD x 0.25mm Thk

0.25mm Thk

1шт.

7

5137118

SHIM,70.5mm ID x 115mm OD x 0.3mm Thk

0.30mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

3шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

190 x 220 x 15/17

1шт.

13

87303827

TAPERED BEARING,120mm ID x 170mm OD x 27mm W

2шт.

14

87329095

HOSE PROTECTION

1шт.

15

82016109

FLEXIBLE SHEATH

1шт.

16

87600174

HUB

ASSY, Contains Ref. 17

1шт.

17

4985063

DOWEL,12mm OD x 20mm L

2шт.

18

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

16шт.

19

87382381

BALL STUD

1шт.

20

13413290

BREATHER

2шт.

21

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

22

10790524

NUT,M16 x 1.5

16шт.

Выбрано товаров: 26
