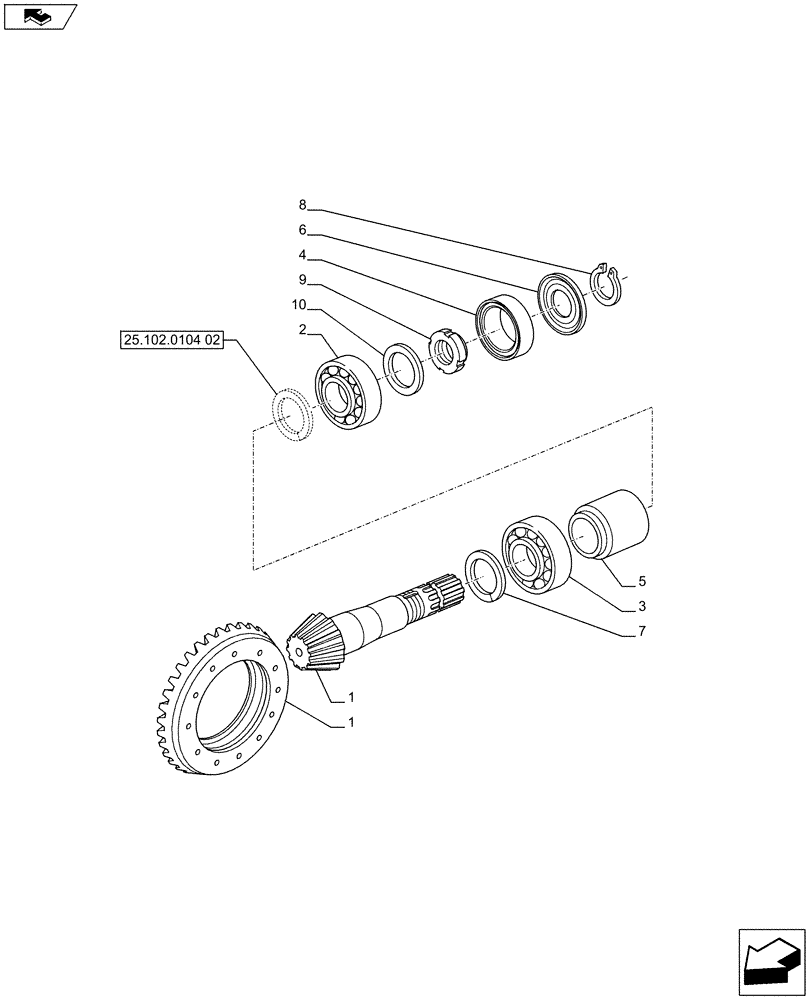

Запчасти Case IH PUMA 170 (25.102.0104[01]) - FRONT AXLE - BEVEL GEAR PAIR - C7130 (25) - FRONT AXLE SYSTEM

1

84381883

BEVEL GEAR

ASSY, RATIO 10/34

1шт.

2

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

M41.275 x 82.550 x 26.543

1шт.

3

5141714

TAPERED BEARING,45mm ID x 85mm OD x 20mm W

1шт.

4

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

5

87382586

SPACER,41.7mm ID x 52mm OD x 54mm L

1шт.

6

87546420

SEAL,37mm ID x 87mm OD x 1mm Thk

M57 x 85 x 12

1шт.

7

84219417

SHIM,45.1mm ID x 58mm OD x 1.9mm Thk

MM45.1 x 58 x 1.9

1шт.

7

84219416

SHIM,45.1mm ID x 58mm OD x 2mm Thk

MM45.1 x 58 x 2.0

1шт.

7

84219415

SHIM,45.1mm ID x 58mm OD x 2.1mm Thk

MM45.1 x 58 x 2.1

1шт.

7

84219414

SHIM,45.1mm ID x 58mm OD x 2.2mm Thk

MM45.1 x 58 x 2.2

1шт.

7

5121690

RING,45.1mm ID x 58mm OD x 2.3mm Thk

1шт.

7

5121691

RING,45.1mm ID x 58mm OD x 2.4mm Thk

1шт.

7

4999063

SHIM,45.1mm ID x 58mm OD x 2.5mm Thk

1шт.

7

4999064

SHIM,45.1mm ID x 58mm OD x 2.6mm Thk

1шт.

7

4999065

SHIM,45.1mm ID x 58mm OD x 2.7mm Thk

1шт.

7

4999066

RING,45.1mm ID x 58mm OD x 2.8mm Thk

1шт.

7

4999067

SHIM,45.1mm ID x 58mm OD x 2.9mm Thk

1шт.

7

4999068

SHIM

MM.45.1 x 58 x 3.0

1шт.

7

4999069

RING

SPARE PART MM.45.1 x 58 x 3.1

1шт.

7

4999070

RING

MM.45.1 x 58 x 3.2

1шт.

7

4999071

RING

SPARE PART MM.45.1 x 58 x 3.3

1шт.

7

4999072

RING

MM.45.1 x 58 x 3.4

1шт.

7

4999073

RING

SPARE PART MM.45.1 x 58 x 3.5

1шт.

8

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

9

84289762

NUT,M40,1.5mm Pitch

M40 x 1.5

1шт.

10

84345881

SPECIAL WASHER

1шт.
