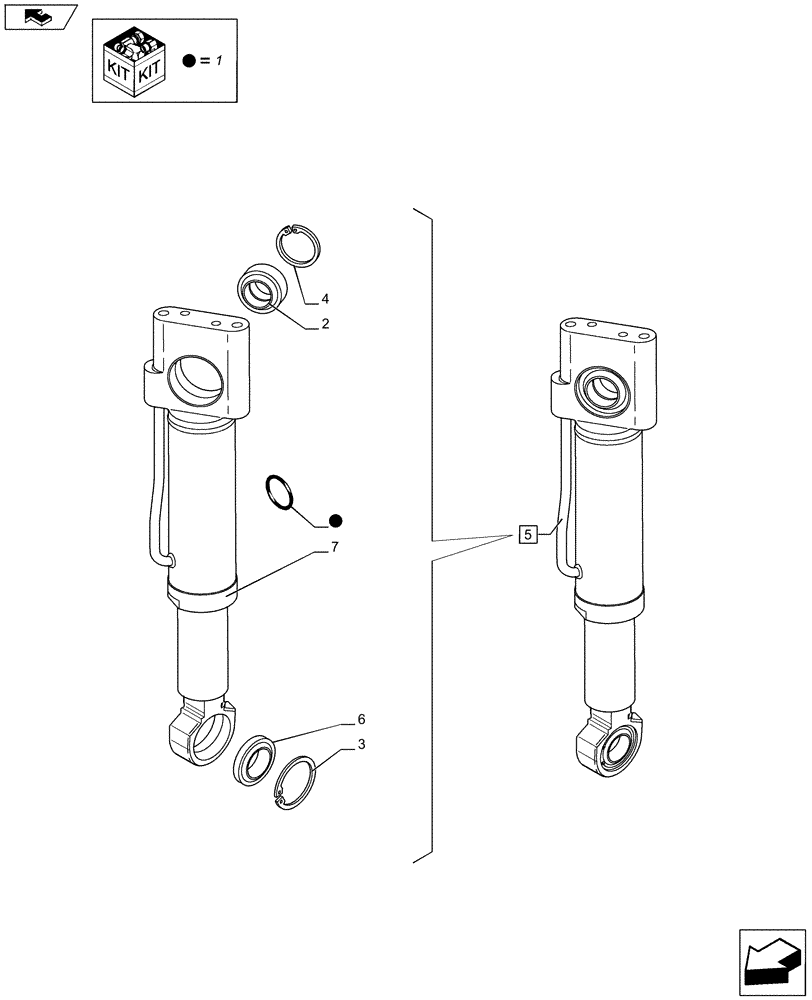

Запчасти Case IH PUMA 170 (25.100.02[06A]) - CLASS 4 4WD AXLE WITH ACTIVE SUSPENSION SKY HOOK - CYLINDER - BREAKDOWN - D7091 (VAR.720463-743963-743964) (25) - FRONT AXLE SYSTEM

1

87644378

SEAL KIT

1шт.

2

87340141

SPHERICAL BEARING,40mm ID x 68mm OD x 40mm W

ID 40mm

1шт.

3

11061076

SNAP RING,M62, Int

1шт.

4

11061376

SNAP RING,M68, Int

1шт.

5

87644387

CYLINDER,60mm Rod, 146mm Stroke

Contains Ref. 2-4,6,7

1шт.

6

82016695

SPHERICAL BEARING,60mm ID x 62mm OD x 35mm W

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.
